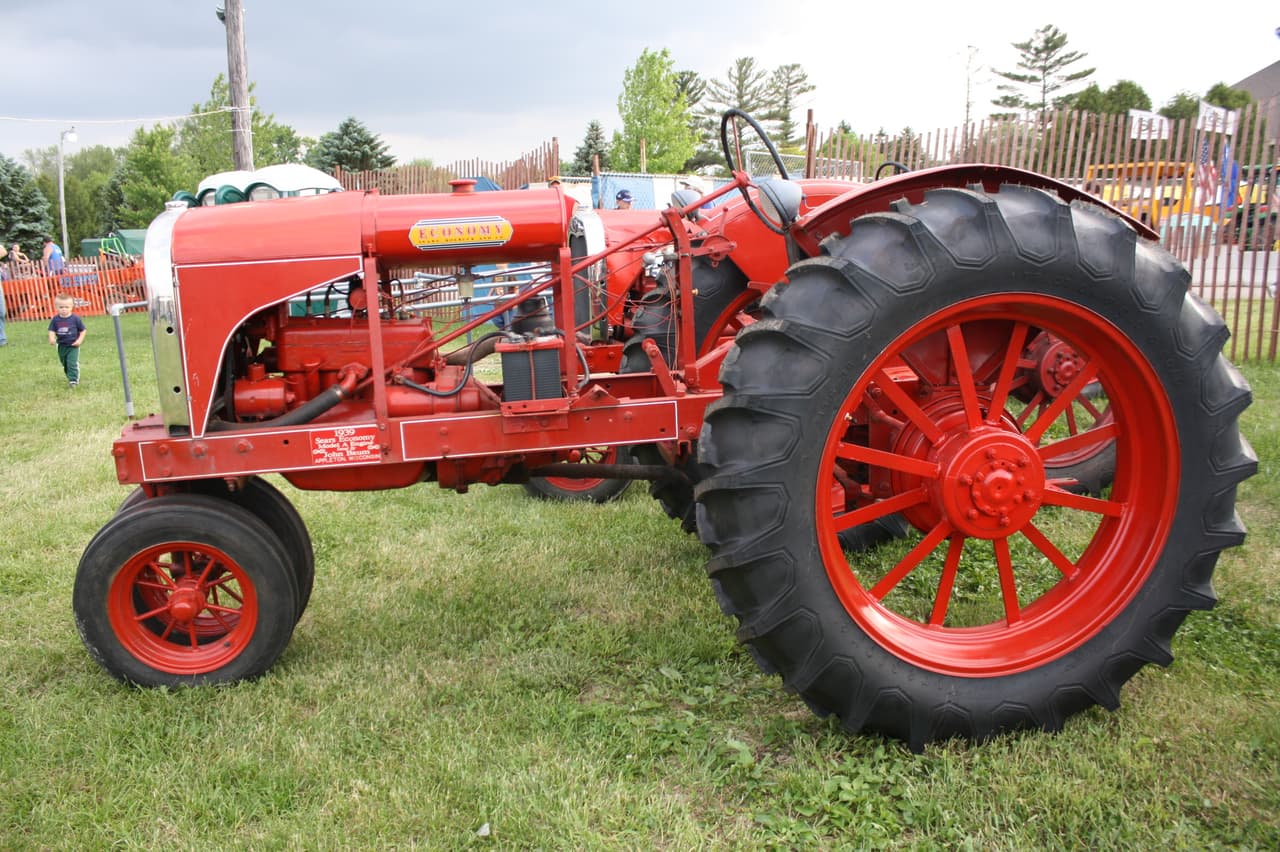

Sears New Economy

Last Updated: June 2024

Overview

The Sears "New Economy" is a historic row-crop tractor that features a 4x2 2WD chassis and manual steering. Drawing power from a Ford Model A gasoline engine, this tractor has a liquid-cooled, four-cylinder inline configuration with a displacement of 201 cubic inches (3.3 liters) and a bore and stroke measuring 3.876 inches by 4.25 inches. With a modest 3-speed gear transmission, operators can enjoy the simplicity of early tractor design. The engine, notable for being from a Ford Model A car, reflects the practical and resourceful approaches of the time, where tractors were sometimes assembled using components from various manufacturers or vehicles. The lack of power take-off and hydraulic system details signifies a workhouse best suited for tasks within its capacity, such as plowing and harrowing with adaptability for diverse farm needs of its era.
Show more...

Key Specifications

Category: Row Crop

Transmission: Gear

Drive Type: 2WD

Fuel Type: Gasoline

Technical Specifications

Engine

Manufacturer
Ford
Model
Model A
Cooling Type
Liquid-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
201
Bore (in)
3.876
Stroke (in)
4.25
Rated RPM
2200
Power Output (hp)
-

Transmission

Type
Gear
Forward Gears
3
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
-
Operating Weight (lb)
-

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
