Scotts S2554

Last Updated: June 2024

Overview

The Scotts S2554 is a 2WD lawn tractor from the series. This tractor was manufactured by John Deere for distributor Scotts in Horicon, Wisconsin, USA and Greeneville, Tennessee, USA from 1999 to 2002. The Scotts S2554 is equipped with a 0.7 L (44.0 cu·in) two-cylinder gasoline engine and a belt-driven hydrostatic transmission with infinite forward and reverse gears. The Scotts S2554 lawn tractor used the Kohler CV25S engine. It is a 0.7 L, 721 cm2, (44.0 cu·in) two-cylinder natural aspirated gasoline engine with 83.0 mm (3.27 in) of cylinder bore and 67.0 mm (2.64 in) of piston stroke. This engine produced 25.3 PS (18.6 kW; 25.0 HP) at 3,600 rpm of output power. The Scotts S2554 is equipped with manual steering, an open operator station, and an 11.4 liters (3 US gal.; 2.5 Imp. gal) fuel tank.

Key Specifications

Category: Lawn and Garden

Power Output: 25

Transmission: Hydrostatic

Drive Type: 2WD

Operating Weight: 604

Fuel Type: Gasoline

Image Gallery

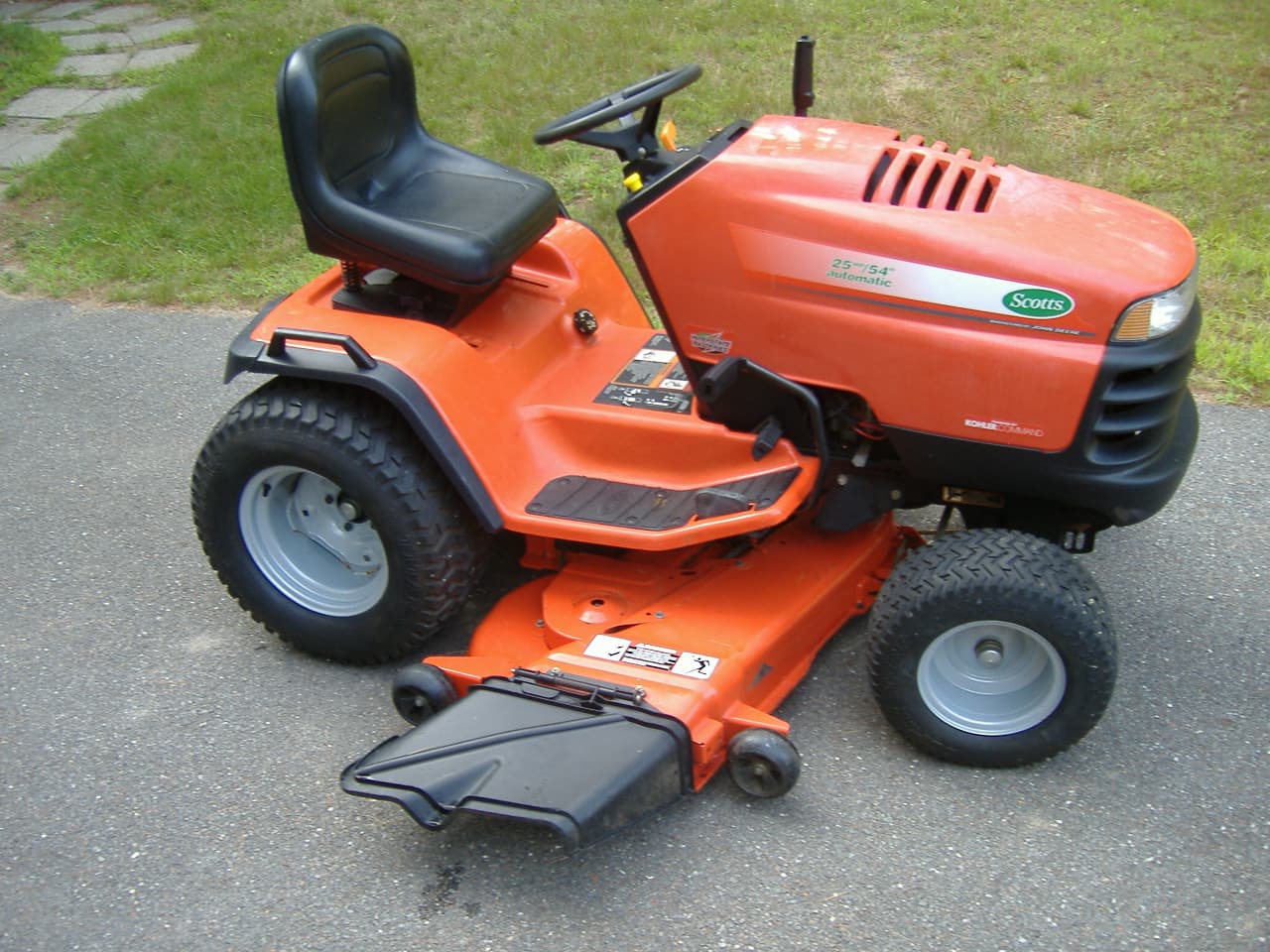

Scotts S2554 Tractor

Scotts S2554 vs. Similar Tractors

Power Output

Excellent

Greater than 91% of similar tractors.

Operating Weight

Average

Greater than 53% of similar tractors.

Technical Specifications

Engine

Manufacturer: Kohler
Model: CV25S
Cooling Type: Air
Cylinder Orientation: V-twin
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated
Cylinders: 2
Displacement (ci): 44
Bore (in): 3.27
Stroke (in): 2.64
Rated RPM: 3600
Power Output (hp): 25

Transmission

Type: Hydrostatic
Forward Gears: Infinite
Reverse Gears: Infinite
Total Gears: -

Dimensions

Length (in): 72
Width (in): -
Height (in): 45.3
Operating Weight (lb): 604

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 7.5
Rear Tire Diameter (in): 24
Rear Tire Width (in): 12
Front/Rear Rim Diameter (in): Front: 8, Rear: 12
Tire Type: Lawn/Turf
Manufacture - End Year: 2002
Hitch Type: Sleeve hitch (optional)
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: Open
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
