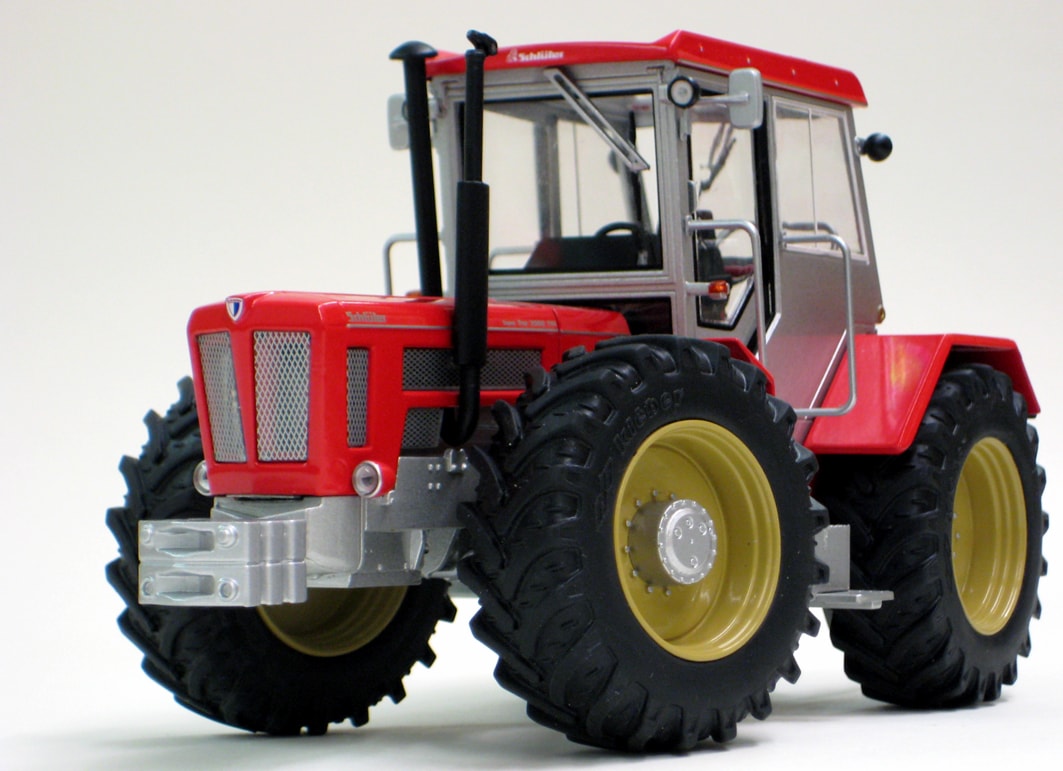

Schluter Super-Trac 2000 TVL

Last Updated: June 2024

Overview

The Schluter Super-Trac 2000 TVL is a 4-wheel drive tractor that was engineered to cater to demanding agricultural tasks. Its robust chassis and a powerful turbocharged diesel engine make it well-suited for heavy-duty applications. The tractor's engine has a displacement of 601.2 cubic inches and delivers 200 horsepower, capable of handling a variety of implements with ease. The Super-Trac 2000 TVL features a manual 12-speed transmission with 12 forward and 5 reverse gears, providing the operator with a wide range of speed options for different farming activities. The hydrostatic power steering facilitates easier maneuvering and control, which is essential for precision work. The tractor's large wheels, both front, and rear measured at a diameter of 38 inches, ensure a stable and comfortable ride over various terrains. Despite the detailed specification data available, there are a few unknown aspects such as the hitch type and PTO details, which are critical for determining implement compatibility. This tractor model, with its weight of 19,183 pounds, emphasizes durability and performance in agricultural settings.
Show more...

Key Specifications

Power Output: 200

Transmission: Manual

Drive Type: 4WD

Operating Weight: 19183

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 112 W 8
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
8
Displacement (ci)
601.2
Bore (in)
4.409
Stroke (in)
4.921
Rated RPM
2000
Power Output (hp)
200

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
231.9
Width (in)
-
Height (in)
125.6
Operating Weight (lb)
19183

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
38
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
