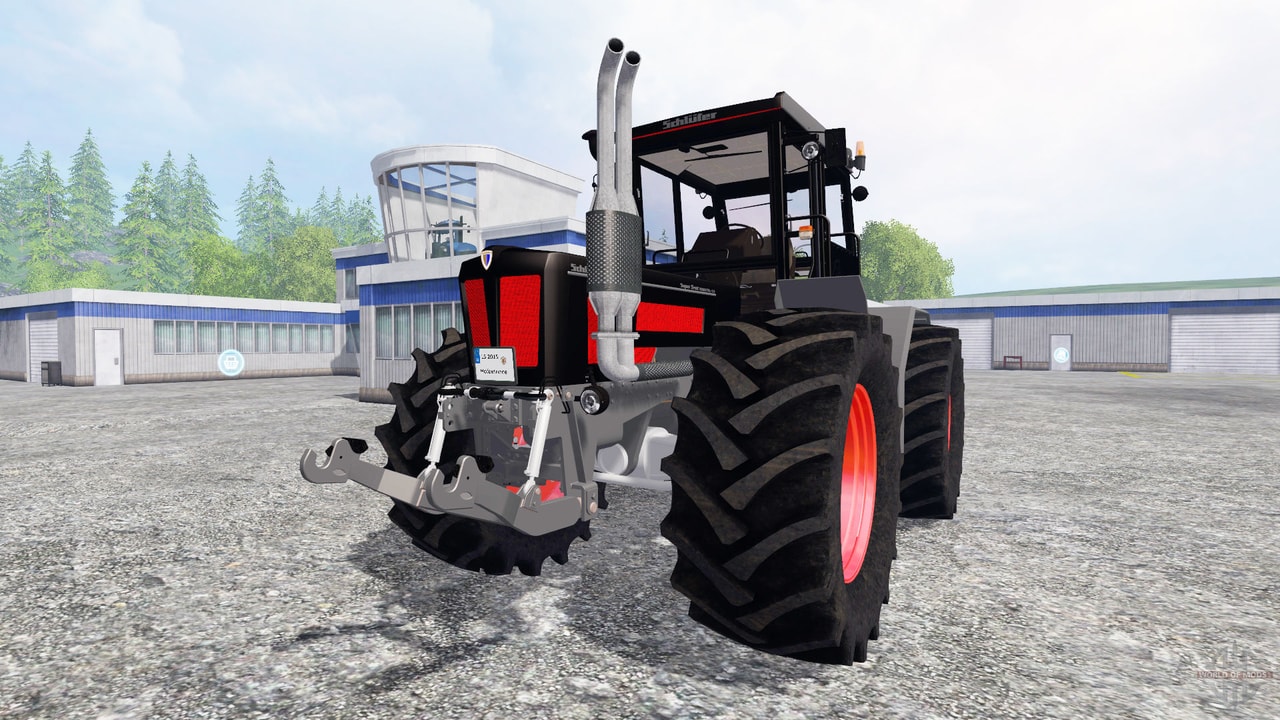

Schluter Super-Trac 1700 TVL

Last Updated: June 2024

Overview

The Schluter Super-Trac 1700 TVL is a robust tractor with a 4x4 4WD chassis, designed to perform in a variety of heavy-duty agricultural operations. The Schluter brand, known for its strong engineering, has equipped this model with a turbocharged diesel engine, the SDMT 112 W 6, capable of delivering a solid 165 horsepower at 2000 RPM and 508.9 lb-ft of torque at a lower 1300 RPM, indicating its efficiency in operations requiring high torque at lower speeds. This is complemented by a transmission that offers 24 forward and 12 reverse speeds, which suggests that it is made for tasks that demand precision control and variable working speeds. With a hydrostatic power steering system, operators can expect easier handling and maneuverability. Its large wheels, sharing a common size of 18.4R38 for both front and rear, ensure good traction and stability across diverse terrains. Furthermore, its significant operating weight of 16,317 lbs contributes to a sturdy and grounded performance. The exact dimensions are 226.4 inches in length and 128.7 inches in height, giving it a commanding presence and the ability to tackle substantial workloads. Given its specs, the Super-Trac 1700 TVL is likely to be an asset for large-scale farming endeavors that require a powerful, reliable machine.
Show more...

Key Specifications

Power Output: 165

Drive Type: 4WD

Operating Weight: 16317

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 112 W 6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
450.9
Bore (in)
4.409
Stroke (in)
4.921
Rated RPM
2000
Power Output (hp)
165

Transmission

Type
-
Forward Gears
24
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
226.4
Width (in)
-
Height (in)
128.7
Operating Weight (lb)
16317

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
38
Front Tire Width (in)
-
Rear Tire Diameter (in)
38
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural (assuming from Ag front/rear)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
