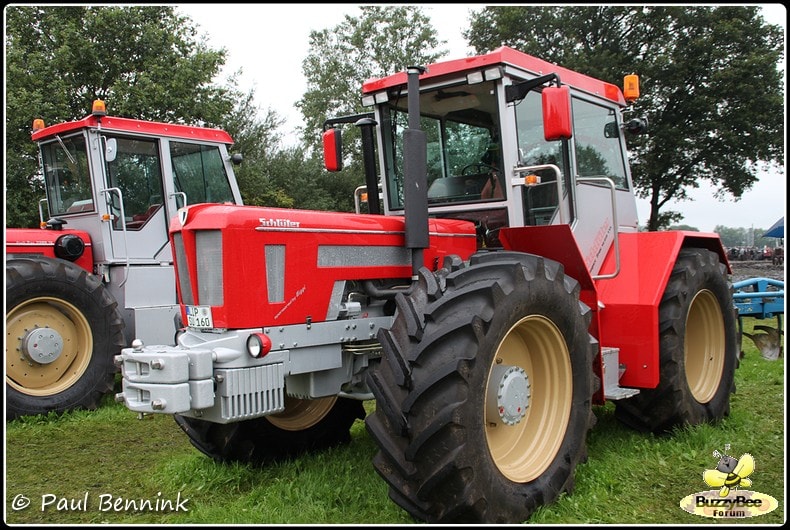

Schluter Super-Trac 1600 TVL

Last Updated: June 2024

Overview

The Schluter Super-Trac 1600 TVL is a heavy-duty tractor designed for demanding agricultural tasks. It features a robust chassis with 4x4 four-wheel drive capability, making it suitable for a variety of terrains and conditions. The tractor is equipped with a hydrostatic power steering system, providing the operator with ease of maneuverability. Its 12-speed transmission, inclusive of 12 forward and 5 reverse gears, allows for precise control of speed and power application. Under the hood, it's powered by Schluter's own SDMT 112 W 6, a turbocharged diesel 6-cylinder engine with a displacement of 450.9 cubic inches. The engine delivers a formidable 165 horsepower and has a peak torque output at 1300 RPM. The Super-Trac 1600 TVL is outfitted with agricultural tires and possesses a lengthy 222.8-inch stance, with a height of 128.7 inches, supporting its commanding presence. Operating at a weight of 15,876 pounds, this tractor is built to handle a substantial workload while maintaining durability and performance.
Show more...

Key Specifications

Power Output: 165

Transmission: Manual

Drive Type: 4WD

Operating Weight: 15876

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 112 W 6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
450.9
Bore (in)
4.409
Stroke (in)
4.921
Rated RPM
2000
Power Output (hp)
165

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
222.8
Width (in)
-
Height (in)
128.7
Operating Weight (lb)
15876

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
38
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
