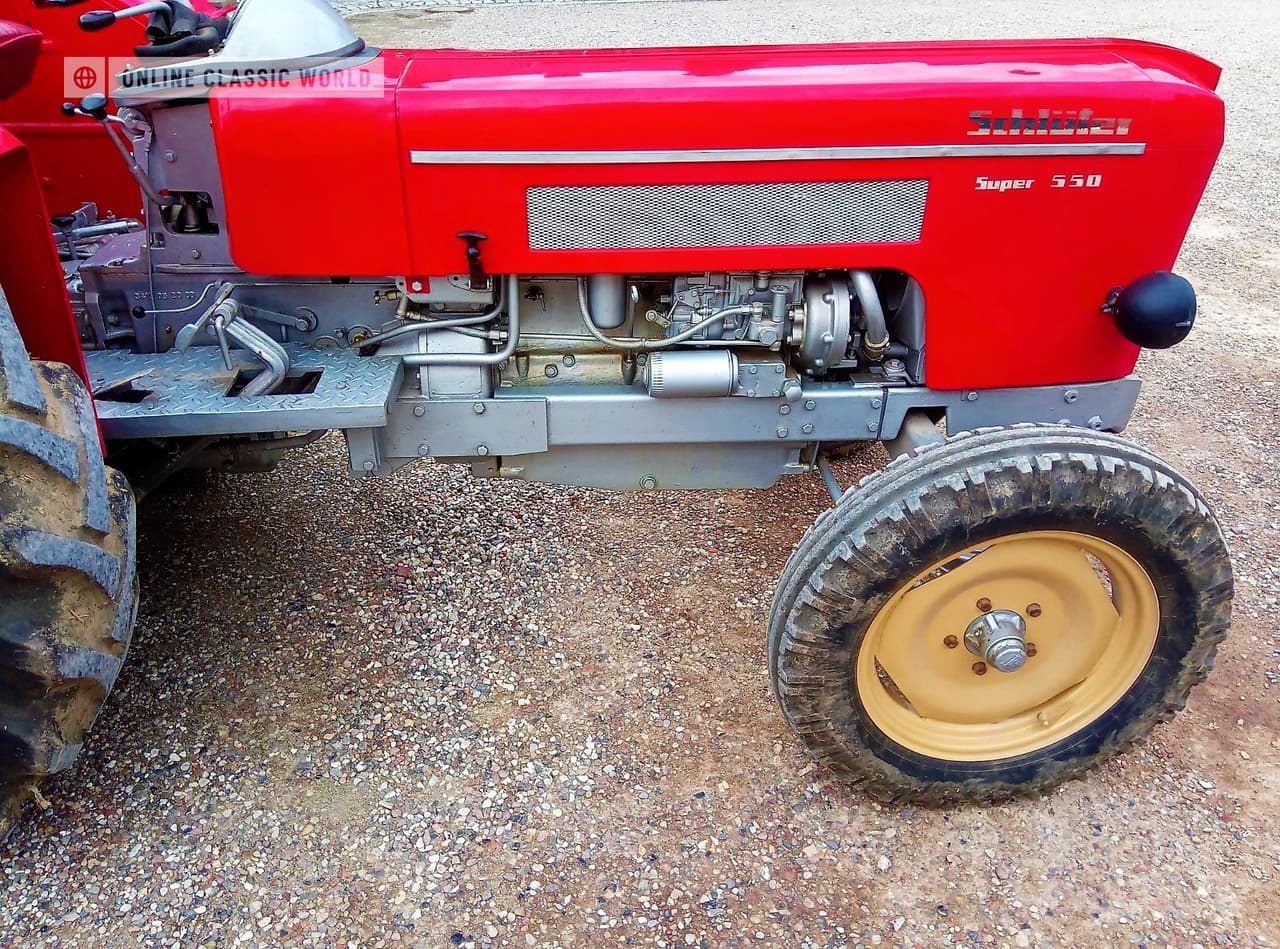

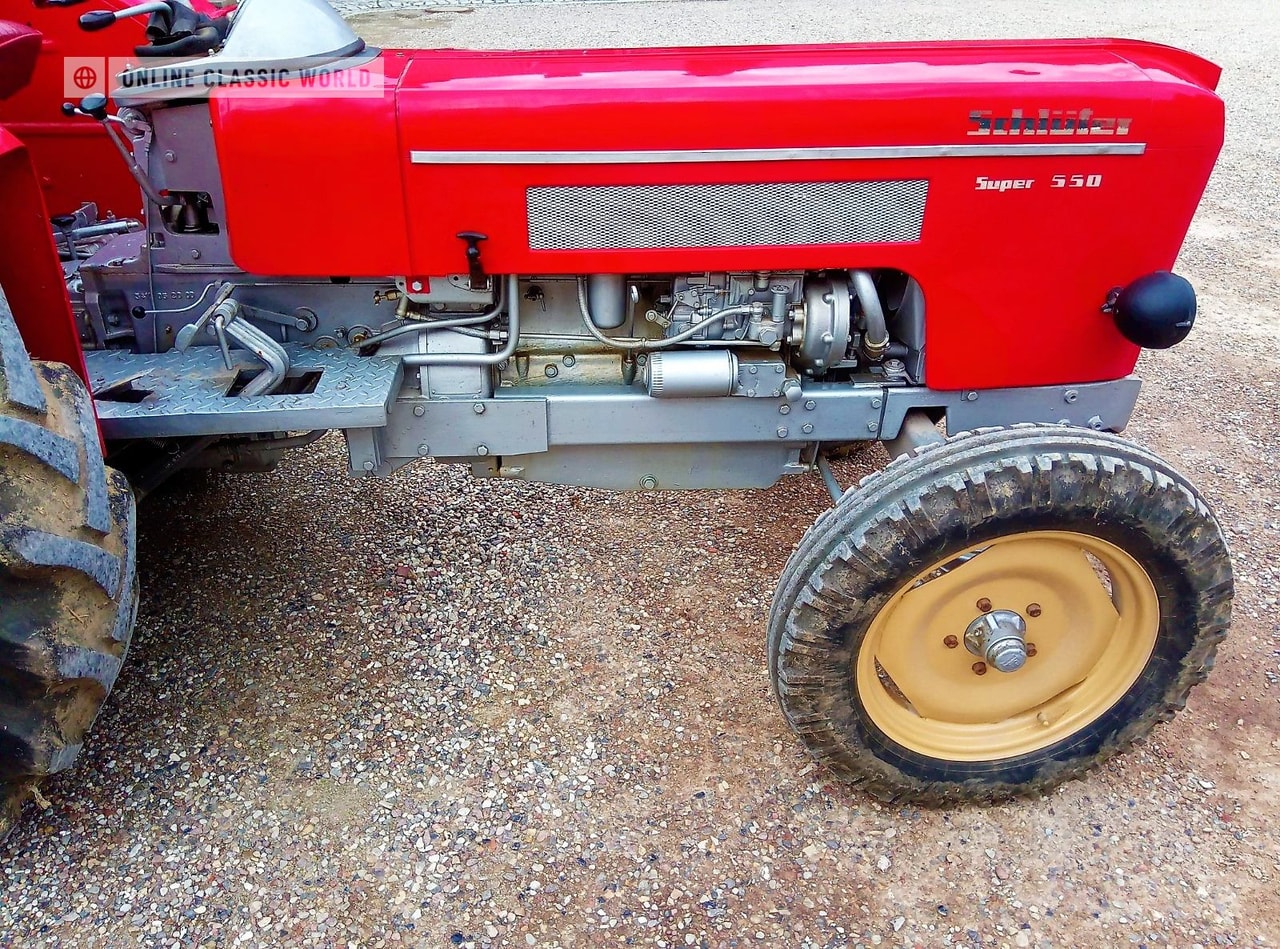

Schluter Super 550S

Last Updated: June 2024

Overview

The Schluter Super 550S is a two-wheel drive (2WD) tractor, identified by its 4x2 2WD chassis designation. It's equipped with a Schluter SD 100 W 4-cylinder engine, capable of delivering 58 horsepower at 1800 RPM and a torque of 166 lb-ft at 1300 RPM, proving sufficient for various agricultural tasks. The mechanical steering and manual 8-speed transmission, with 8 forward and 4 reverse gears, allow for versatile maneuvering and field operations. It showcases a wheelbase of 89.4 inches, a length of 152.4 inches, and a height of 96.1 inches. The weight of the tractor varies from 6471 to 7332 pounds, highlighting its built for substantial duty. The tractor rolls on standard agricultural tires, 6.50-20 in front and 12.4-36 in the back, supporting optimal traction in various farming conditions. The specific model characteristics are indicative of a robust and reliable tractor suitable for a range of farming applications.
Show more...

Key Specifications

Power Output: 58

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6471 to 7332

Technical Specifications

Engine

Manufacturer
Schluter
Model
SD 100 W 4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
239.6
Bore (in)
3.937
Stroke (in)
4.921
Rated RPM
1800
Power Output (hp)
58

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
152.4
Width (in)
-
Height (in)
96.1
Operating Weight (lb)
6471 to 7332

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
20
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
36
Rear Tire Width (in)
12.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
