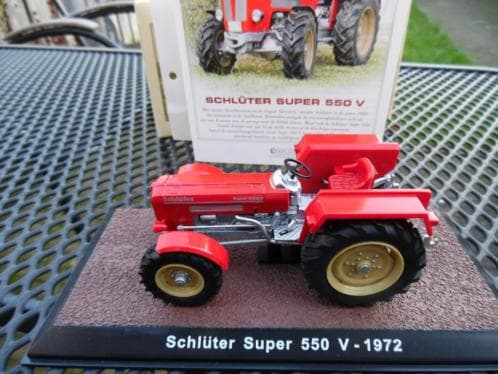

Schluter Super 550

Last Updated: June 2024

Overview

The Schluter Super 550 is a utility tractor known for its no-nonsense mechanical functionality. It has a 2WD chassis and is powered by a four-cylinder, liquid-cooled Schluter SD 100 W 4 diesel engine which has a displacement of 239.6 cubic inches and provides a power output of 60.2 hp at 1800 RPM. The tractor's manual transmission supports up to 16 forward and reverse gears, enabling flexibility and power across various tasks. The tractor's dimensions, with a length of 144.3 inches and a standard width of 66.1 inches, make it suitable for a variety of work conditions. It was built with a mechanical steering system and comes with standard ag tires, though optional sizes are available for different working conditions. Additional details such as PTO speed and hydraulic system type are unspecified, focusing instead on the more mechanical aspects of operation.
Show more...

Key Specifications

Category: Utility

Power Output: 60.2

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6559

Fuel Type: Diesel

Image Gallery

Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor Schluter Super 550 Tractor

Schluter Super 550 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 50% of similar tractors.

Technical Specifications

Engine

Manufacturer
Schluter
Model
SD 100 W 4
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
4
Displacement (ci)
239.6
Bore (in)
3.937
Stroke (in)
4.921
Rated RPM
1800
Power Output (hp)
60.2

Transmission

Type
Manual
Forward Gears
-
Reverse Gears
-
Total Gears
16

Dimensions

Length (in)
144.3
Width (in)
66.1
Height (in)
66.1
Operating Weight (lb)
6559

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
19
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Optional sizes available)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category II/I
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Open (Cab height given)
Starter Type
-
Brake Type
-
Hydraulic System Type
-
