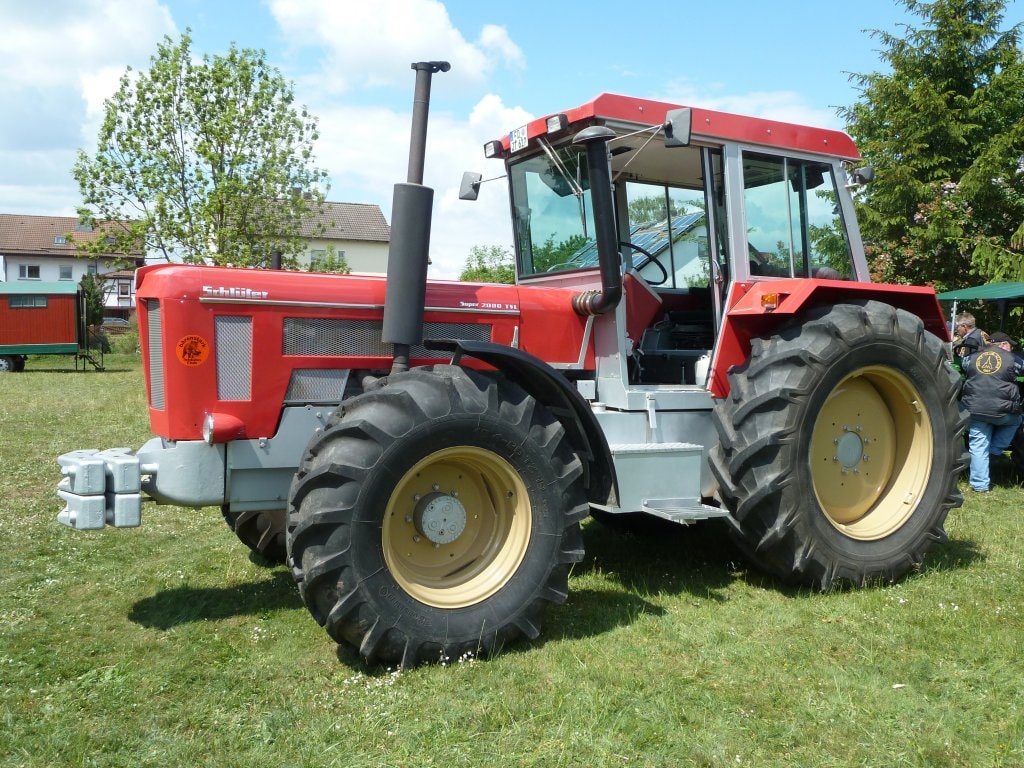

Schluter Super 2000 TVL Special

Last Updated: June 2024

Overview

The Schluter Super 2000 TVL Special is built for heavy-duty farm work. It comes equipped with a powerful turbocharged 8-cylinder diesel engine, the Schluter SDMT 112 W 8, with a substantial displacement of 601.2 cubic inches. This engine can deliver 200 horsepower, with an impressive torque of 571.6 lb-ft at just 1300 RPM, providing ample power for a variety of tough tasks. The liquid-cooled engine paired with hydrostatic power steering ensures durability and ease of control. The tractor features a robust chassis with a 4x4 MFWD 4WD configuration, ensuring excellent traction in challenging conditions. The manual transmission has 12 forward gears and 5 reverse gears, allowing the operator to select the optimal speed for different jobs. With its operating weight of 16,537 lbs and wheelbase of 104.3 inches, the tractor offers stability and a strong presence on the field. The tractor's dimensions with a length of 196.9 inches and a height of 115 inches underscore its significant size. The Super 2000 TVL Special rides on durable 'Ag' tires sized 18.4R26 in the front and 20.8R38 in the rear to provide reliable performance across various terrains.
Show more...

Key Specifications

Power Output: 200

Transmission: Manual

Drive Type: 4WD

Operating Weight: 16,537

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 112 W 8
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
8
Displacement (ci)
601.2
Bore (in)
4.409
Stroke (in)
4.921
Rated RPM
2000
Power Output (hp)
200

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
196.9
Width (in)
-
Height (in)
115
Operating Weight (lb)
16,537

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
