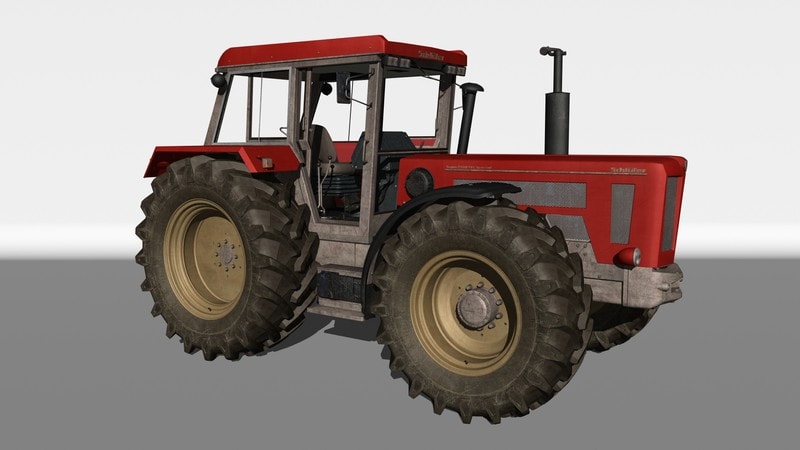

Schluter Super 1900 TVL Special

Last Updated: June 2024

Overview

The Schluter Super 1900 TVL Special is a robust tractor with an emphasis on power and durability. This tractor comes with a 4x4 MFWD 4WD chassis, indicating a four-wheel drive layout with mechanical front-wheel drive. It is operated through a hydrostatic power steering system, enhancing maneuverability in various working conditions. The tractor's propulsion is managed by a 12-speed transmission, with a significant focus on providing sufficient gearing for both field tasks and transport. This Schluter model is powered by a Schluter-manufactured 450.9 cubic inch, 6-cylinder intercooled turbo engine, which outputs 185 horsepower at a rated RPM of 2100 and delivers a torque of 586.4 lb-ft at 1300 RPM. Physically, the tractor measures 183.9 inches in length and 115.0 inches in height. In operation, it weighs 15,214 lbs. While it excels in its primary functionalities, some specifics regarding its hitch capabilities, PTO speed, and hydraulic system were not available, which are often critical for users requiring compatibility with various implements and attachments. The tractor's wheelbase of 107.1 inches aids in stability, especially when performing tasks that require precision.
Show more...

Key Specifications

Power Output: 185

Drive Type: 4WD

Operating Weight: 15214

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 112 W 6 LLK
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Intercooled turbo
Cylinders
6
Displacement (ci)
450.9
Bore (in)
4.409
Stroke (in)
4.921
Rated RPM
2100
Power Output (hp)
185

Transmission

Type
-
Forward Gears
12
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
183.9
Width (in)
-
Height (in)
115
Operating Weight (lb)
15214

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
