Schluter Super 1500V

Last Updated: June 2024

Overview

The Schluter Super 1500V is a robust and versatile tractor known for its 4x4 MFWD 4WD chassis and powerful 8-cylinder engine. It features a 6-speed manual transmission, power assist steering, and an engine capable of producing 150 horsepower at 1800 RPM and 470.6 lb-ft of torque at 1300 RPM. With a displacement of 579.9 cubic inches and a bore/stroke ratio of 4.331x4.921 inches, it combines power and efficiency. The tractor's wheelbase measures 104.3 inches, and its total weight is 14,332 lbs. This model's stature is evident with a length of 194.5 inches and a height of 76.0 inches. It is designed to perform in various agricultural tasks, although its category and some other specific features remain unspecified based on the data provided.

Key Specifications

Power Output: 150

Transmission: Manual

Drive Type: 4WD

Operating Weight: 14332

Image Gallery

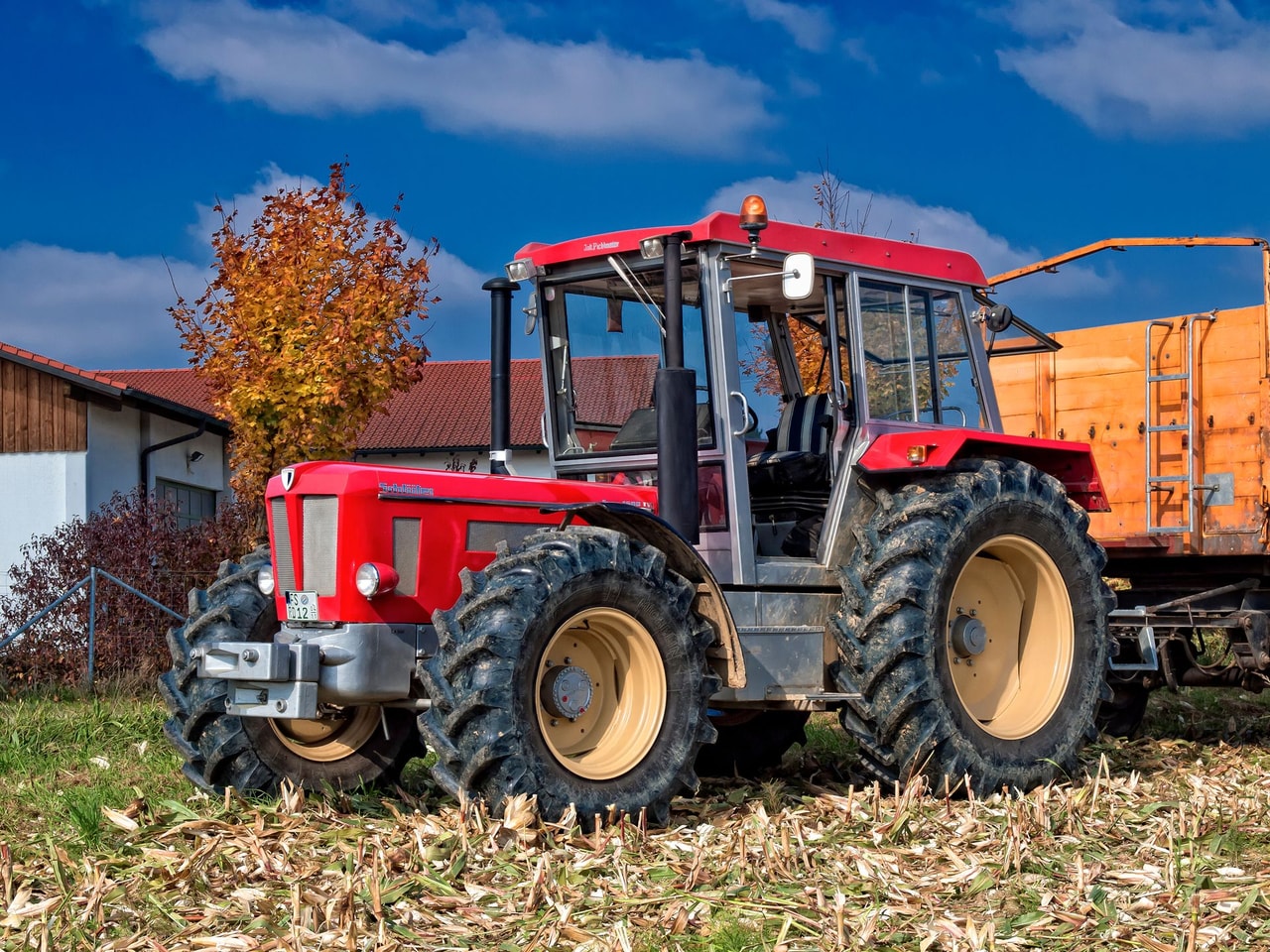

Schluter Super 1500V Tractor

Technical Specifications

Engine

Manufacturer: Schluter
Model: SDM 110 W 8
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: -
Cylinders: 8
Displacement (ci): 579.9
Bore (in): 4.331
Stroke (in): 4.921
Rated RPM: 1800
Power Output (hp): 150

Transmission

Type: Manual
Forward Gears: 6
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 194.5
Width (in): -
Height (in): 76
Operating Weight (lb): 14332

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Power Assist
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
