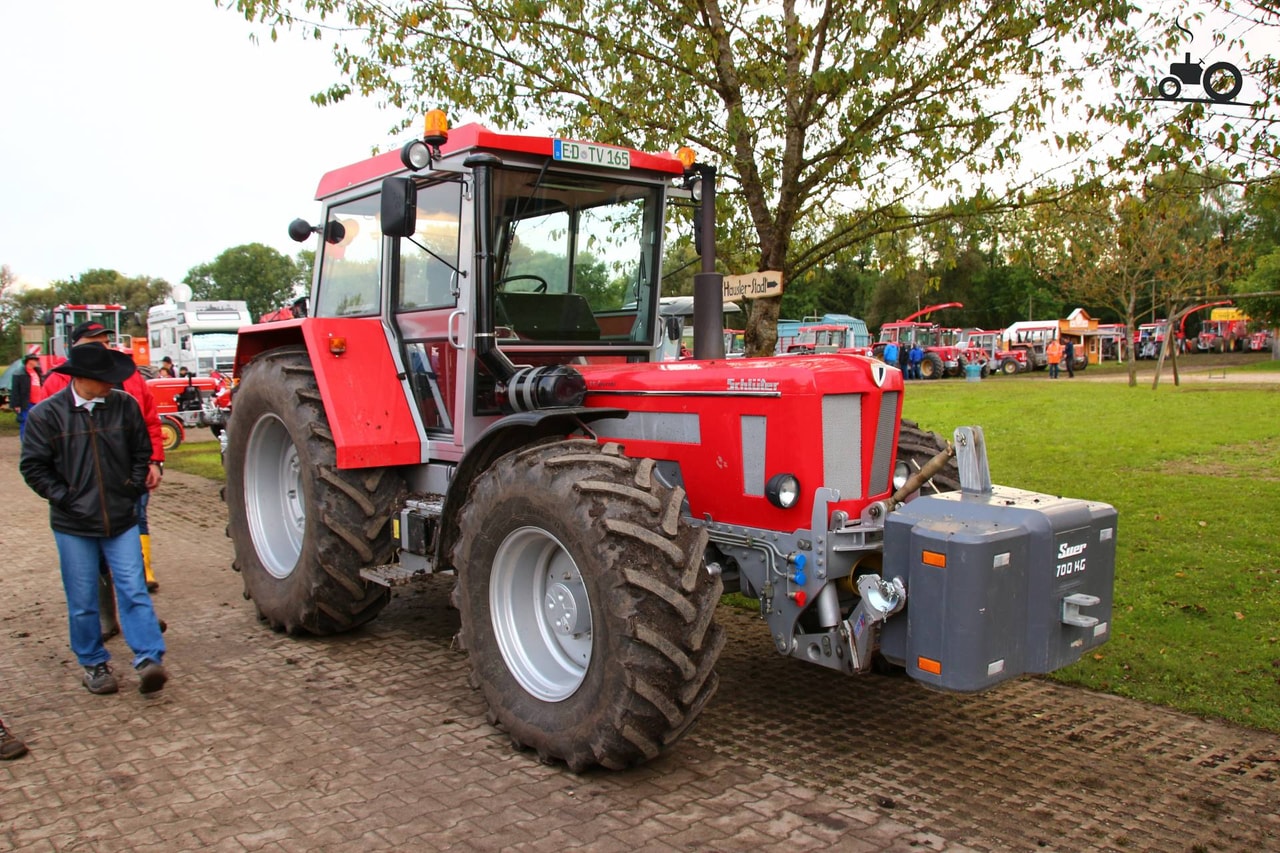

Schluter Super 1500TVL

Last Updated: June 2024

Overview

Schluter's Super 1500TVL is a robust agricultural tractor that offers reliable performance thanks to its powerful 6-cylinder turbo engine, capable of delivering 145 horsepower and a torque of 434.4 lb-ft at 1300 RPM. With a rated engine speed of 2000 RPM and a displacement of 434.9 cubic inches, the tractor is built to handle heavy-duty tasks. The manual transmission system boasts 12 forward and 6 reverse gears, complementing the tractor's 4WD capability for enhanced maneuverability and traction across various types of terrain. The design incorporates a durable chassis with a 4x4 MFWD 4WD configuration, power assist steering, and a substantial operating weight of 12,072 lbs to maintain stability. Its wheelbase stretches to 103.9 inches, contributing to the overall length of 178.7 inches and a height of 101.2 inches. The tractor is outfitted with agricultural tires, a practical feature for farming operations, with the front and rear tires sized at 12.4-28 and 18.4-38 inches respectively. This tractor is engineered for substance, longevity, and efficiency in agricultural tasks.
Show more...

Key Specifications

Power Output: 145

Transmission: Manual

Drive Type: 4WD

Operating Weight: 12072

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 110 W 6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
Turbo
Cylinders
6
Displacement (ci)
434.9
Bore (in)
4.331
Stroke (in)
4.921
Rated RPM
2000
Power Output (hp)
145

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
6
Total Gears
-

Dimensions

Length (in)
178.7
Width (in)
-
Height (in)
101.2
Operating Weight (lb)
12072

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power Assist
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
12.4
Rear Tire Diameter (in)
38
Rear Tire Width (in)
18.4
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
