Schluter Super 1500 TVL Special

Last Updated: June 2024

Overview

The Schluter Super 1500 TVL Special is a 4WD tractor, equipped with hydrostatic power steering and a manual transmission featuring 12 forward and 6 reverse gears. The heart of this tractor is its Schluter 6-cylinder turbo engine with a displacement of 450.9 cubic inches, and it is capable of producing either 160 or 165 horsepower, which indicates that there may be different versions or potential updates during its production run. The tractor's rated RPM is 2100, and it comes with agricultural tires, a Category 3 hitch, and a notable operating weight of over 14,000 pounds. This tractor's large frame, powerful engine, and durable construction make it suitable for a variety of heavy-duty agricultural tasks.

Key Specifications

Power Output: 160 / 165 (There appears to be two different power ratings provided, it is assumed that the tractor may have variations)

Transmission: Manual

Drive Type: 4WD

Operating Weight: 14,773 / 14,112 (Two different weights are provided, possibly due to equipment variations or measurement inaccuracies)

Image Gallery

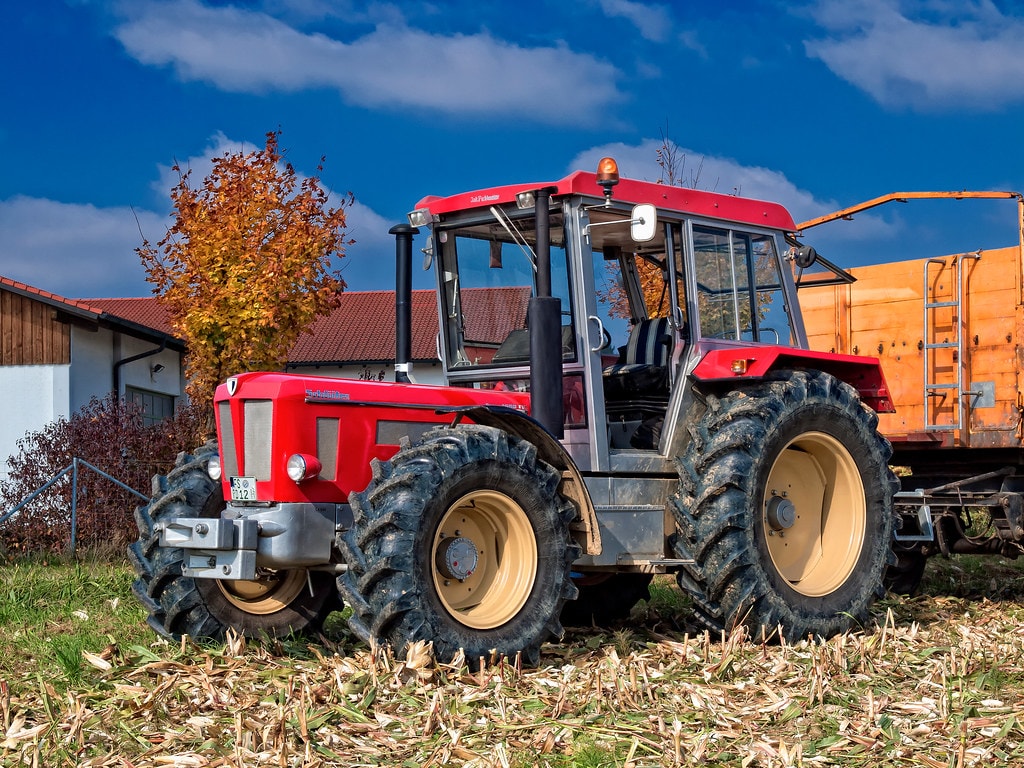

Schluter Super 1500 TVL Special Tractor

Technical Specifications

Engine

Manufacturer: Schluter
Model: SDMT 112 W 6 / SDM 112 W 6 (Assumed to be the same model with a potential typo)
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: -
Induction Type: Turbo
Cylinders: 6
Displacement (ci): 450.9
Bore (in): 4.409
Stroke (in): 4.921
Rated RPM: 2100
Power Output (hp): 160 / 165 (There appears to be two different power ratings provided, it is assumed that the tractor may have variations)

Transmission

Type: Manual
Forward Gears: 12
Reverse Gears: 6
Total Gears: -

Dimensions

Length (in): 183.9 / 187.4 (Two different lengths are provided, likely due to different model variations or measurement techniques)
Width (in): -
Height (in): 113.4
Operating Weight (lb): 14,773 / 14,112 (Two different weights are provided, possibly due to equipment variations or measurement inaccuracies)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x4 MFWD 4WD
Drive Type: 4WD
Steering Type: Hydrostatic power
Coolant Capacity (qts): -
Front Tire Diameter (in): Unknown (based on tire specification 14.9R28)
Front Tire Width (in): Unknown (based on tire specification 14.9R28)
Rear Tire Diameter (in): Unknown (based on tire specification 18.4R38)
Rear Tire Width (in): Unknown (based on tire specification 18.4R38)
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural (Ag)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
