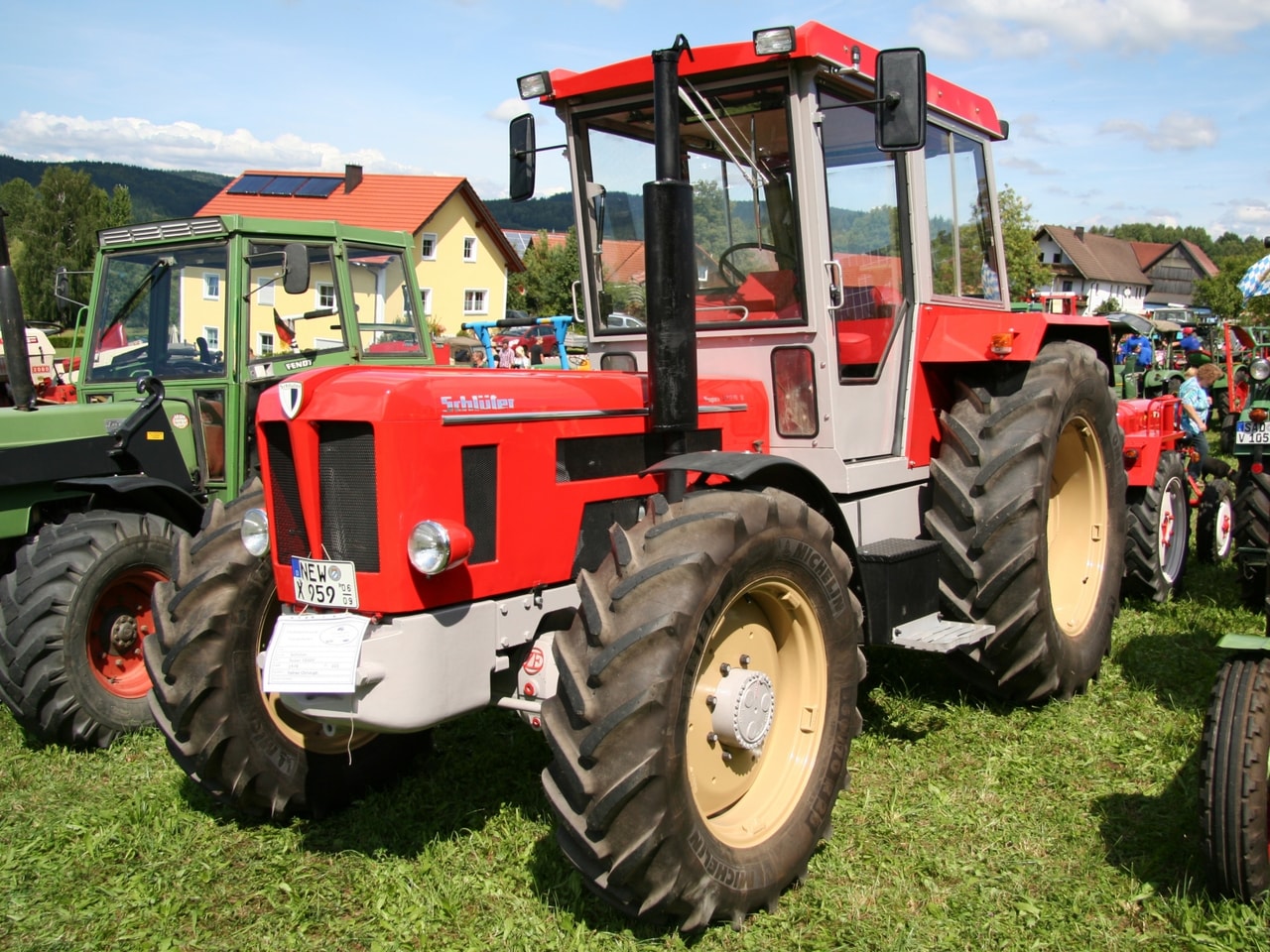

Schluter Super 1050V

Last Updated: September 2024

Overview

The Schluter Super 1050V is a powerful 4-wheel drive tractor built for tough farm work. It has a strong 6-cylinder engine that puts out 105 horsepower. This tractor can handle big jobs with its 12 forward gears and 6 reverse gears. The engine runs best at 1800 RPM and can produce a lot of pulling power with 318.6 lb-ft of torque at 1300 RPM.

This tractor is big and sturdy. It's 180.7 inches long and 110.6 inches tall. It weighs 10,804 pounds, which helps it grip the ground well. The Super 1050V has large tires - 12.4-28 in the front and 16.9-38 in the back. It also has a category 3 hitch, which means it can lift and pull heavy farm equipment. The hydrostatic power steering makes it easy to turn and control, even with big loads.
Show more...

Key Specifications

Power Output: 105 hp (78.3 kW)

Drive Type: 4WD

Operating Weight: 10804 lb (4901 kg)

Schluter Super 1050V vs. Similar Tractors

Power Output

The Power Output for the Schluter Super 1050V is Above Average. It is greater than 75% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.3K+ tractors in our database)

Operating Weight

The Operating Weight for the Schluter Super 1050V is Above Average. It is greater than 77% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.2K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Schluter Super 1050V is Above Average. It is greater than 87% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Schluter Super 1050V is Poor. It is greater than 7% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Unknown
Model
SDM 108 W 6
Cylinders
6
Displacement
419 ci (6.9 L)
Bore
4.25 in (108.0 mm)
Stroke
4.92 in (125.0 mm)
Rated RPM
1800
Power Output
105 hp (78.3 kW)

Transmission

Forward Gears
12
Reverse Gears
6

Drivetrain

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
