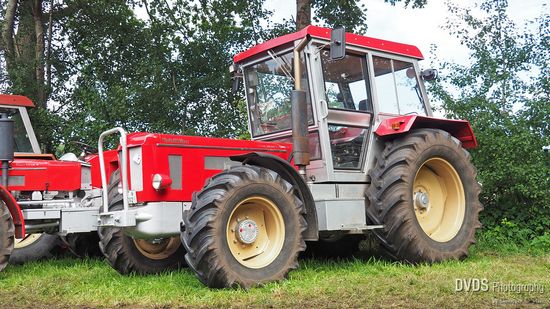

Schluter Super 1050 V Special

Last Updated: June 2024

Overview

The Schluter Super 1050 V Special is a robust and sizable tractor best suited for large agricultural tasks. Powered by a Schluter SDM 110 W 6-cylinder engine, it delivers 110 horsepower and 333.4 lb-ft of torque, making it capable of handling heavy-duty operations. The tractor boasts a hydrostatic power steering system that ensures ease of maneuvering and a demanding presence with a weight of 11,686 pounds. The Schluter Super 1050 V Special is equipped with a 4WD chassis to tackle a variety of terrains and a 12-speed transmission that includes 12 forward gears and 6 reverse, giving the driver a great range of control over the tractor's speed and power output. The engine's displacement stands at 434.9 cubic inches, which contributes to the machine's powerful performance. It has an overall length of 183.9 inches and a height of 113.4 inches, accommodating operators with substantial size and presence.
Show more...

Key Specifications

Power Output: 110

Drive Type: 4WD

Operating Weight: 11686

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDM 110 W 6
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
6
Displacement (ci)
434.9
Bore (in)
4.331
Stroke (in)
4.921
Rated RPM
1800
Power Output (hp)
110

Transmission

Type
-
Forward Gears
12
Reverse Gears
6
Total Gears
18

Dimensions

Length (in)
183.9
Width (in)
-
Height (in)
113.4
Operating Weight (lb)
11686

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
