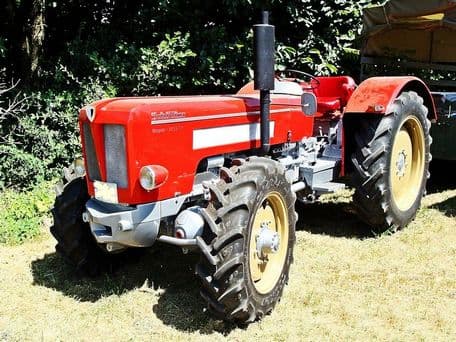

Schluter S600

Last Updated: June 2024

Overview

The Schluter S600 represents a utilitarian farm tractor with a 4x2 2WD chassis and mechanical steering, designed to tackle various agricultural tasks comfortably. It utilises a 56 hp engine at 1800 RPM, with a displacement of 264.2 cubic inches and an 8-speed manual transmission. The engine, SD 105 W 4, is a 4-cylinder model, though details such as cooling type, cylinder orientation, and fuel type are not specified within the provided data. The tractor’s design and operation weigh between 6174 to 6615 pounds and dimensions characteristic of tractors designed for medium-scale farming operations. While specific features related to the tractor's hitch system, PTO, hydraulics and brakes are not provided, this tractor likely fits well within a range of general agricultural duties.
Show more...

Key Specifications

Power Output: 56

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6174 to 6615

Technical Specifications

Engine

Manufacturer
Unknown
Model
SD 105 W 4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
264.2
Bore (in)
4.134
Stroke (in)
4.921
Rated RPM
1800
Power Output (hp)
56

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
161.4
Width (in)
-
Height (in)
64.6
Operating Weight (lb)
6174 to 6615

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
