Schluter Euro Trac 1700 LS

Last Updated: September 2024

Overview

The Schluter Euro Trac 1700 LS is a powerful 4-wheel drive tractor built for serious farm work. It has a strong MAN diesel engine with 6 cylinders and 170 horsepower. This engine is turbocharged and intercooled, which helps it work hard without overheating. The tractor has a lot of gears - 24 forward and 12 reverse - giving the driver many options for different tasks.

This tractor is big and sturdy. It's 211 inches long and 122.4 inches tall. The Euro Trac 1700 LS has large 18.4R38 agricultural tires on both the front and back, which help it grip the soil well. It uses hydrostatic power steering, making it easier to turn and control. With its strong engine and tough build, this Schluter tractor is ready to handle heavy-duty farming jobs with ease.
Show more...

Key Specifications

Power Output: 170 hp (126.8 kW)

Drive Type: 4WD

Fuel Type: Diesel

Image Gallery

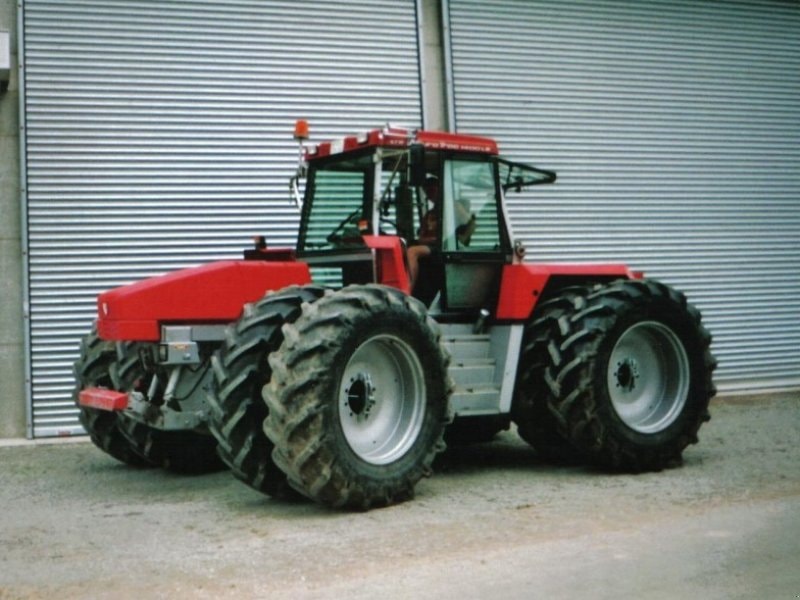

Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor Schluter Euro Trac 1700 LS Tractor

Schluter Euro Trac 1700 LS vs. Similar Tractors

Power Output

The Power Output for the Schluter Euro Trac 1700 LS is Above Average. It is greater than 88% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 6.6K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Schluter Euro Trac 1700 LS is Above Average. It is greater than 87% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Schluter Euro Trac 1700 LS is Average. It is greater than 34% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
MAN
Model
D 0826 LUE 503
Cooling Type
Liquid
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement
419 ci (6.9 L)
Bore
4.41 in (112.0 mm)
Stroke
4.92 in (125.0 mm)
Rated RPM
2200
Power Output
170 hp (126.8 kW)

Transmission

Forward Gears
24
Reverse Gears
12

Drivetrain

Chassis
4x4 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
