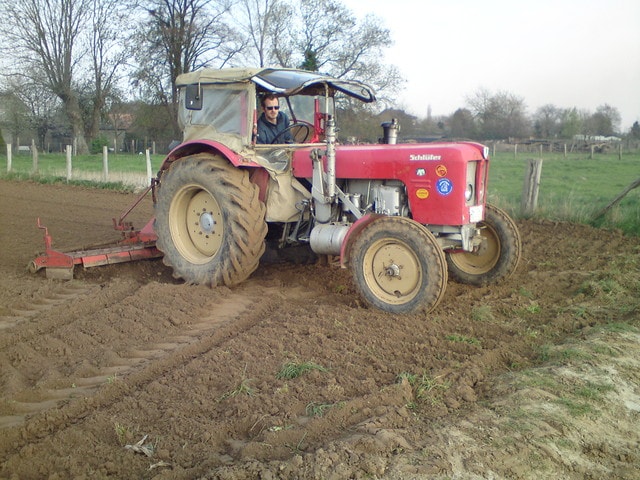

Schluter Compact 950T

Last Updated: September 2024

Overview

The Schluter Compact 950T is a powerful 2-wheel drive tractor designed for various farming tasks. It features a 4-cylinder diesel engine made by Schluter, which produces 95 horsepower. The engine is turbocharged, giving it extra power when needed. With a displacement of 290 cubic inches, this tractor has plenty of strength for tough jobs.

The Compact 950T comes with a manual transmission that offers 12 forward gears and 6 reverse gears, totaling 18 gears. This wide range of gears allows farmers to choose the right speed for different tasks. The tractor has power-assisted steering, making it easier to control in the field. It measures 155.5 inches long and 98.8 inches tall, with a wheelbase of 92.5 inches. Weighing 7,960 pounds, it's a sturdy machine built to handle heavy work. The tractor is equipped with agricultural tires, with 6.50-20 tires in front and larger 16.9-34 tires in the rear for better traction.
Show more...

Key Specifications

Power Output: 95 hp (70.8 kW)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 7960 lb (3611 kg)

Fuel Type: Diesel

Schluter Compact 950T vs. Similar Tractors

Power Output

The Power Output for the Schluter Compact 950T is Above Average. It is greater than 71% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 1.4K+ tractors in our database)

Operating Weight

The Operating Weight for the Schluter Compact 950T is Average. It is greater than 65% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 1.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Schluter Compact 950T is Above Average. It is greater than 74% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Schluter Compact 950T is Poor. It is greater than 8% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 110 W 4
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement
290 ci (4.8 L)
Bore
4.33 in (110.0 mm)
Stroke
4.92 in (125.0 mm)
Rated RPM
1800
Power Output
95 hp (70.8 kW)

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
6
Total Gears
18

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power Assist
