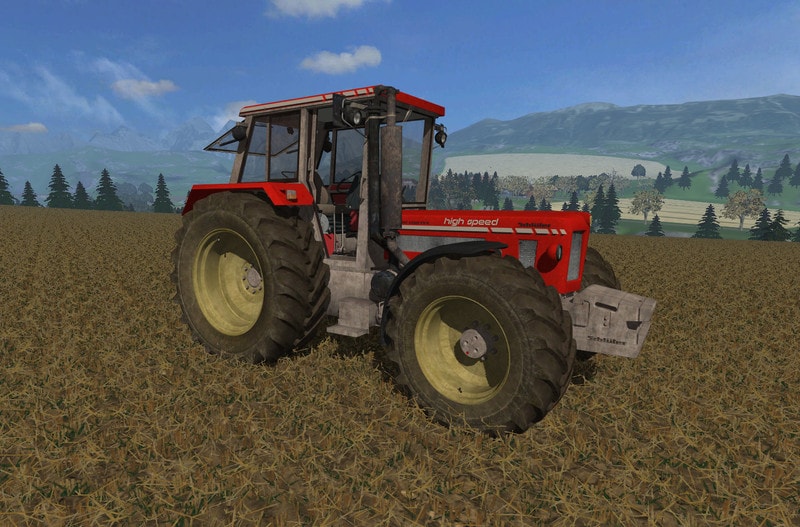

Schluter Compact 1350 TV 6

Last Updated: June 2024

Overview

The Schluter Compact 1350 TV 6 is a sturdy 4-wheel drive tractor designed to handle a variety of farming tasks. Its solid wheelbase of approximately 97.5 inches (average between two provided measurements of 95.7 inches and 99.2 inches) offers stability and support during operation. Equipped with a 130 horsepower turbocharged diesel engine from MAN, model D 0226 MCE 51, with six cylinders and a displacement of 347 cubic inches, this tractor promises robust performance and durability. The tractor is fitted with a hydrostatically powered steering system facilitating maneuverability and ease of control. The transmission offers 12 forward and 5 reverse speeds, allowing for versatility in various agricultural applications. Physically, it boasts an approximate length of around 167.9 inches (average between two provided lengths), a consistent height of 106.7 inches, and a standard operating weight of 11,466 pounds. Ag tires are mounted on the tractor, with sizes 14.9R28 for the front and 18.4R38 for the rear, contributing to its field competence. While comprehensive specs on components such as hitch type and hydraulic systems are not available, the tractor holds a Category 3 hitch classification indicating its capability in handling significant load weights.
Show more...

Key Specifications

Power Output: 130

Drive Type: 4WD

Operating Weight: 11466

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MAN
Model
D 0226 MCE 51
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
347
Bore (in)
4.016
Stroke (in)
4.567
Rated RPM
2200
Power Output (hp)
130

Transmission

Type
-
Forward Gears
12
Reverse Gears
5
Total Gears
-

Dimensions

Length (in)
166.1 - Two different lengths are provided; assuming the average of 166.1 inches and 169.7 inches.
Width (in)
-
Height (in)
106.7
Operating Weight (lb)
11466

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
