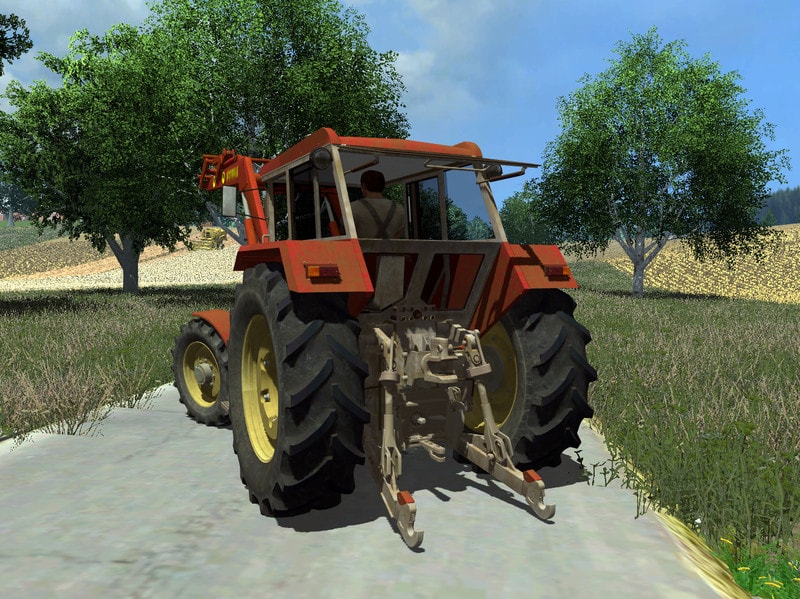

Schluter Compact 1050T

Last Updated: June 2024

Overview

The Schluter Compact 1050T tractor is a utility vehicle designed for a wide range of tasks typical in a farming environment. It features a 2-wheel drive chassis (4x2) and is powered by Schluter's own turbocharged diesel engine, which provides 100 horsepower and 318.6 lb-ft of torque at a rated RPM of 1800. Its transmission offers 12 forward and 6 reverse gears, accommodating various speeds required for different tasks. The tractor rides on standard agricultural tires, with a wheelbase of 92.5 inches, ensuring a stable operation. It measures 155.5 inches in length and has an operating height of 98.8 inches. The weight of this tractor varies from 7,960 to 8,908 pounds depending on configuration and accessories. The presence of hydrostatic power steering assists the operator in maneuvering and controlling the tractor with more ease. Specific details about its hydraulic system, hitch type, and PTO speeds are not provided, indicating potential customization options or the need to refer to manufacturer details for additional clarification.
Show more...

Key Specifications

Category: Utility

Power Output: 100

Drive Type: 2WD

Operating Weight: 7960 - 8908

Fuel Type: Diesel

Schluter Compact 1050T vs. Similar Tractors

Power Output
Above Average
Greater than 82% of similar tractors.
Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
Schluter
Model
SDMT 110 W 4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
290
Bore (in)
4.331
Stroke (in)
4.921
Rated RPM
1800
Power Output (hp)
100

Transmission

Type
-
Forward Gears
12
Reverse Gears
6
Total Gears
18

Dimensions

Length (in)
155.5
Width (in)
-
Height (in)
98.8
Operating Weight (lb)
7960 - 8908

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
