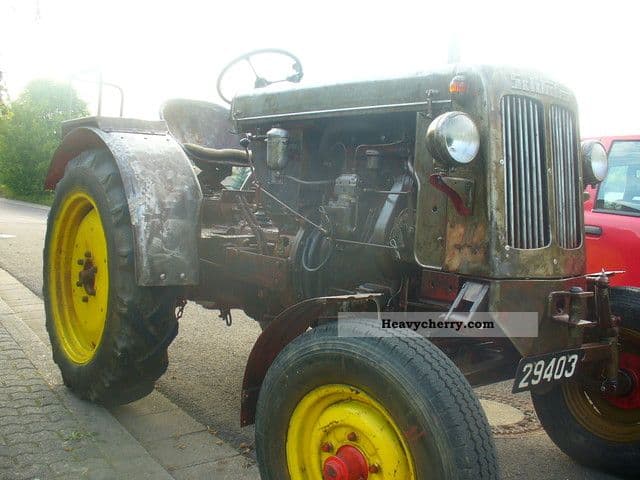

Schluter AS 22

Last Updated: September 2024

Overview

The Schluter AS 22 is a utility tractor designed for standard tread applications. It's a 2-wheel drive model with a 5-speed gear transmission and one reverse gear. This tractor is compact, measuring 110 inches long, 62.2 inches wide, and 62.6 inches tall, making it suitable for various farm tasks.

Under the hood, the AS 22 features a Schluter-made, liquid-cooled diesel engine. With two cylinders and a displacement of 143.8 cubic inches, this engine offers average power for its class. It produces 22 horsepower at 1500 rpm, which is on the lower end compared to other tractors. The tractor weighs 3571 pounds, placing it in the average range for its category. It comes equipped with agricultural tires on both front and rear, and has a Category 3 hitch for attaching implements. The AS 22 also boasts a 15.8-inch ground clearance and an oil bath air cleaner, adding to its practicality on the farm.
Show more...

Key Specifications

Category: Utility

Power Output: 22 hp (16.4 kW)

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3571 lb (1620 kg)

Fuel Type: Diesel

Schluter AS 22 vs. Similar Tractors

Power Output

The Power Output for the Schluter AS 22 is Below Average. It is greater than 12% of similar Utility tractors in our database.

Horsepower distribution of Utility tractors

(across 4.7K+ tractors in our database)

Operating Weight

The Operating Weight for the Schluter AS 22 is Average. It is greater than 34% of similar Utility tractors in our database.

Operating weight distribution of Utility tractors

(across 4.4K+ tractors in our database)

Engine Displacement

The Engine Displacement for the Schluter AS 22 is Average. It is greater than 40% of similar Utility tractors in our database.

Engine displacement distribution of Utility tractors

(across 1K+ tractors in our database)

Engine Rated RPM

The Engine Rated RPM for the Schluter AS 22 is Poor. It is greater than 4% of similar Utility tractors in our database.

Engine rated RPM distribution of Utility tractors

(across 1K+ tractors in our database)

Technical Specifications

Engine

Manufacturer
Schluter
Cooling Type
Liquid-cooled
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
2
Displacement
144 ci (2.4 L)
Bore
3.94 in (100.1 mm)
Stroke
5.91 in (150.1 mm)
Rated RPM
1500
Power Output
22 hp (16.4 kW)

Transmission

Type
Gear
Forward Gears
5
Reverse Gears
1

Drivetrain

Chassis
4x2 2WD
Drive Type
2WD
