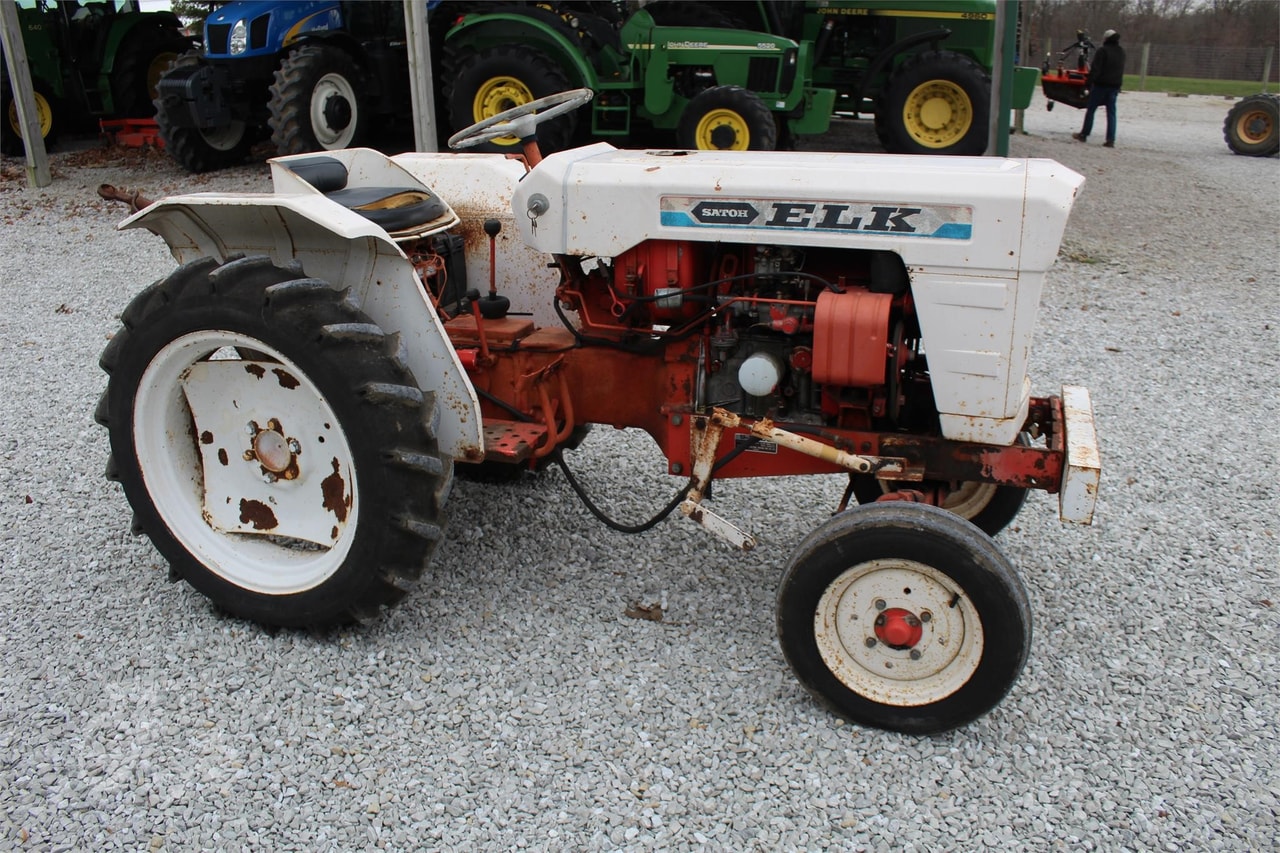

Satoh Elk S550

Last Updated: June 2024

Overview

The Satoh Elk S550 is a compact utility tractor designed for a variety of tasks on a small farm or estate. Powered by a 17 hp Mazda gasoline engine with a displacement of 60.25 cubic inches, this tractor offers reasonable power in a compact form. The 4x2 2WD chassis paired with a manual steering system requires some physical effort to operate, particularly when working on uneven terrain or with heavy loads. The transmission is a basic 6-speed gear type, with 6 forward and 2 reverse gears, which provides sufficient variability to handle different working conditions. An electric start system makes it easy to get the tractor running. While exact tire dimensions are not known, the tractor can accommodate both agricultural and turf tires, denoting versatility in different working environments. This model has a notable operating weight of 1429 lbs and dimensions that contribute to its agility and ease of handling.
Show more...

Key Specifications

Category: Utility

Power Output: 17

Transmission: Gear

Drive Type: 2WD

Operating Weight: 1429

Fuel Type: Gasoline

Satoh Elk S550 vs. Similar Tractors

Power Output
Poor
Greater than 6% of similar tractors.
Operating Weight
Below Average
Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer
Mazda
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Gasoline
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
60.25
Bore (in)
2.677
Stroke (in)
2.677
Rated RPM
2300
Power Output (hp)
17

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
103.4
Width (in)
45
Height (in)
51.6 (to steering wheel)
Operating Weight (lb)
1429

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Coolant Capacity (qts)
3.2
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag: Agricultural, Lawn/turf: Turf
Manufacture - End Year
-
Hitch Type
Category I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
