Satoh Bison S650

Last Updated: June 2024

Overview

The Satoh Bison S650 is a compact utility tractor equipped with a 25 hp Mazda gasoline engine. It features a manual steering system and a rugged unsynchronized gear transmission with 6 forward and 2 reverse gears to handle various farm tasks. The tractor has a 4x2 2WD chassis and a dry disc clutch that makes for simple yet effective operation in various conditions. With a wheelbase of 60.4 inches and an operating weight of 2105 pounds, the Bison S650 is designed for maneuverability and stability. The tractor operates at a rated RPM of 2800, and it has an oil bath cleaner to maintain a clean engine intake. Its engine is liquid-cooled, ensuring it runs efficiently even under heavy workloads. The tractor's dimensions and weight suggest its suitability for tasks that require a balance between size and power.

Key Specifications

Category: Utility

Power Output: 25

Transmission: Unsynchronized Gear

Drive Type: 2WD

Operating Weight: 2105

Fuel Type: Gasoline

Image Gallery

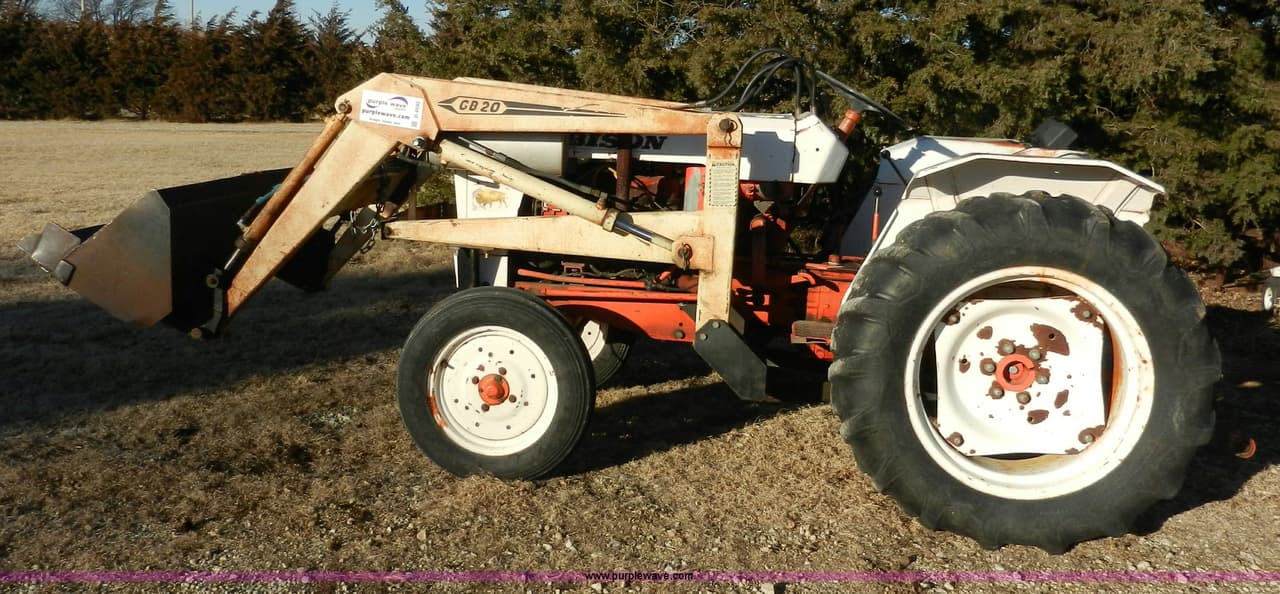

Satoh Bison S650 Tractor

Satoh Bison S650 vs. Similar Tractors

Power Output

Below Average

Greater than 18% of similar tractors.

Operating Weight

Below Average

Greater than 17% of similar tractors.

Technical Specifications

Engine

Manufacturer: Mazda
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally Aspirated (assumed from absence of turbo/supercharger information)
Cylinders: 4
Displacement (ci): 60.2
Bore (in): 2.677
Stroke (in): 2.677
Rated RPM: 2800
Power Output (hp): 25

Transmission

Type: Unsynchronized Gear
Forward Gears: 6
Reverse Gears: 2
Total Gears: -

Dimensions

Length (in): 105.1
Width (in): 52.9
Height (in): 54.7 (to top of steering wheel)
Operating Weight (lb): 2105

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): 5
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Agricultural
Manufacture - End Year: -
Hitch Type: Category I
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
