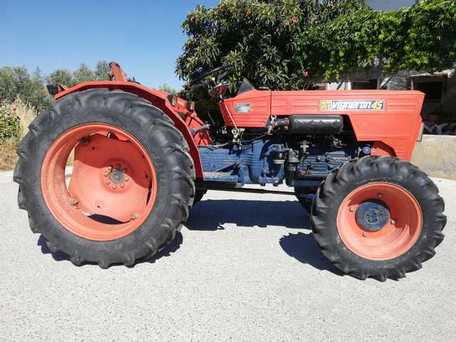

SAME Vigneron 45

Last Updated: June 2024

Overview

The SAME Vigneron 45 is an orchard/vineyard tractor recognized for its compact design and efficiency in specialized farming environments. The tractor is powered by a SAME 983L three-cylinder air-cooled diesel engine with a displacement of 165.7 cubic inches, delivering 45 hp at 1800 RPM through a 9-speed transmission with 9 forward and 3 reverse gears. It features a dry disc clutch and a 4x2 two-wheel-drive chassis optimized for maneuverability in narrow spaces, characterizing the orchard and vineyard applications. With standard 2WD and optional 4WD configurations, the Vigneron 45 adapts to various terrains, providing a suitable option for farmers requiring versatility and reliability. The tractor supports a Category 1 rear hitch, electric starter system, and a width of 42.3 inches, assuring a broad fit for multiple farming activities. The lengths are 112.2 inches for the 2WD model and 111.4 inches for the 4WD model, allowing it to accommodate the spatial constraints of orchard rows and vine lines. With a focus on practicality, the tractor's open operator station equipped with ROPS ensures operator safety while enabling easy access and visibility.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 45

Drive Type: 2WD

Operating Weight: 2WD: 3307 | 4WD: 3594

Fuel Type: Diesel

SAME Vigneron 45 vs. Similar Tractors

Power Output
Below Average
Greater than 16% of similar tractors.
Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
983L
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Direct Injection
Cylinders
3
Displacement (ci)
165.7
Bore (in)
3.86
Stroke (in)
4.72
Rated RPM
1800
Power Output (hp)
45

Transmission

Type
-
Forward Gears
9
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
2WD: 112.2 | 4WD: 111.4
Width (in)
42.3 *
Height (in)
2WD Hood: 44.3 | 4WD Hood: 47.2 | ROPS: 57.1
Operating Weight (lb)
2WD: 3307 | 4WD: 3594

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Standard (ag)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 1
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
