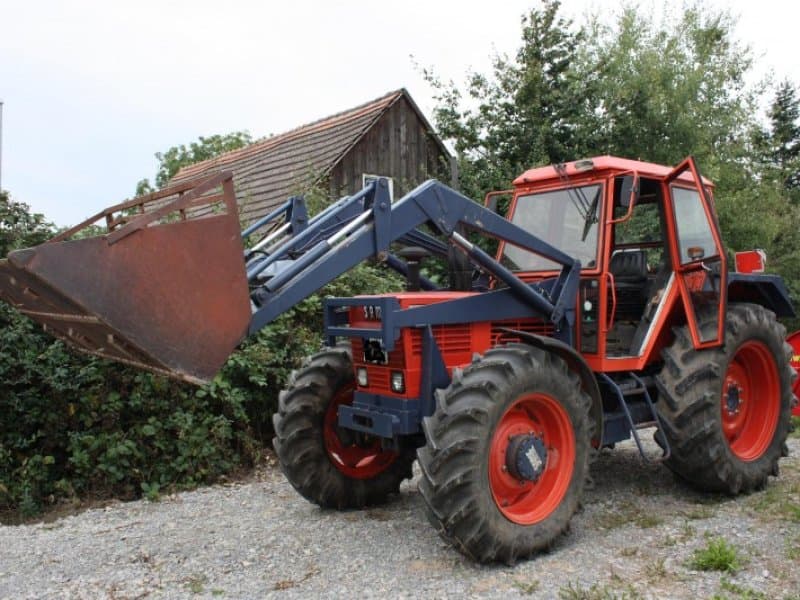

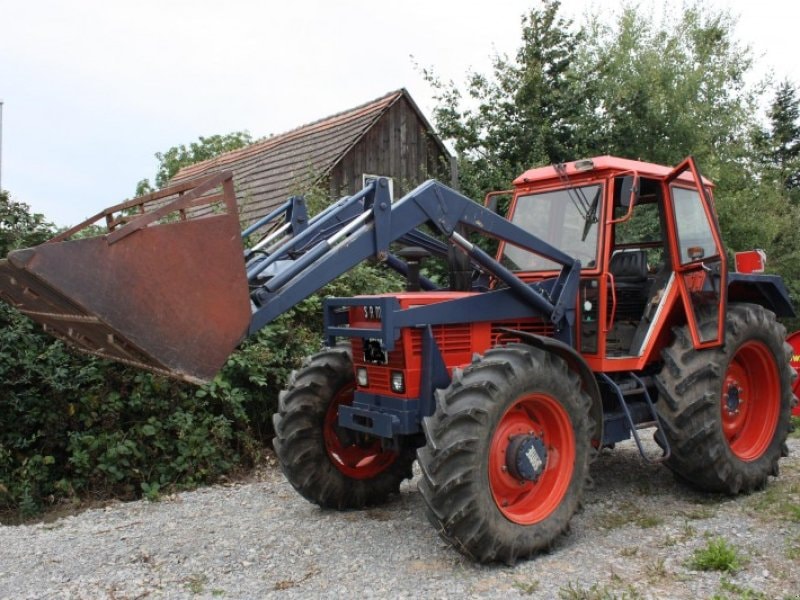

SAME Trident 130

Last Updated: June 2024

Overview

The SAME Trident 130 is a durable tractor known for its powerful engine and robust chassis. Equipped with a 4x4 MFWD 4WD (mechanical front-wheel drive with four-wheel drive) system, it ensures excellent traction in diverse agricultural tasks. The tractor has a manual transmission system with 12 forward gears and 3 reverse gears providing versatility for various farm operations. It boasts a 6-cylinder diesel engine by SAME that delivers 125 horsepower and achieves a rated RPM of 2300. The engine's displacement is a solid 380.4 cubic inches with a bore and stroke measured at 4.134 and 4.72 inches, respectively. Rolling on agricultural tires—14.9 inches wide in the front and 16.9 inches wide in the rear—it's built to handle various terrains while farming. The Trident 130's dimensions include a length of 180.71 inches, a height of 112.20 inches, and a substantial operating weight of 10,804 lbs, indicating a well-sized tractor for substantial farming tasks.
Show more...

Key Specifications

Power Output: 125

Transmission: Manual

Drive Type: 4WD

Operating Weight: 10,804

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
6
Displacement (ci)
380.4
Bore (in)
4.134
Stroke (in)
4.72
Rated RPM
2300
Power Output (hp)
125

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
180.71
Width (in)
-
Height (in)
112.2
Operating Weight (lb)
10,804

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
28
Front Tire Width (in)
14.9
Rear Tire Diameter (in)
38
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
