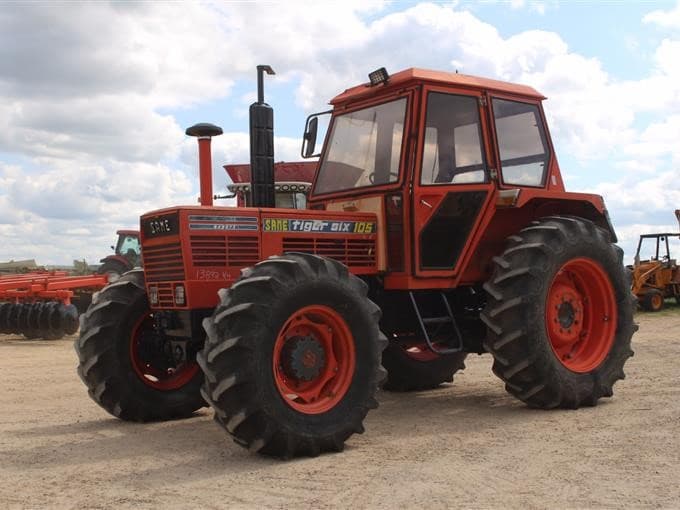

SAME Tiger Six 105

Last Updated: June 2024

Overview

The SAME Tiger Six 105 is a row-crop tractor known for its robust 105 hp, air-cooled, diesel engine housed within the SAME 986P model and configured with six cylinders. It has a syncromesh transmission with a total of 12 forward and 3 reverse gears facilitated by a mechanical dry disc clutch. The tractor's power steering and 4x2 2WD chassis offer maneuverability in various farming tasks. It operates at an engine-rated RPM of 2200 with an engine displacement of 331.2 cubic inches. The Tiger Six 105 was available with optional tire configurations to suit different agricultural needs and came with operator station options including ROPS or a cab. Unique for its time, this tractor serves well for various tasks in row-crop farming, thanks to its adaptability and strength.
Show more...

Key Specifications

Category: Row Crop

Power Output: 105

Transmission: Syncromesh

Drive Type: 2WD

Operating Weight: 8333 (2WD ROPS), 8928 (2WD Cab), 9193 (4WD ROPS), 9788 (4WD Cab)

Fuel Type: Diesel

Image Gallery

SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor SAME Tiger Six 105 Tractor

SAME Tiger Six 105 vs. Similar Tractors

Power Output
Below Average
Greater than 25% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
986P
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
6
Displacement (ci)
331.2
Bore (in)
3.86
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
105

Transmission

Type
Syncromesh
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
170.5 (2WD), 175.6 (4WD)
Width (in)
87.4
Height (in)
-
Operating Weight (lb)
8333 (2WD ROPS), 8928 (2WD Cab), 9193 (4WD ROPS), 9788 (4WD Cab)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agricultural)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
ROPS/Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
