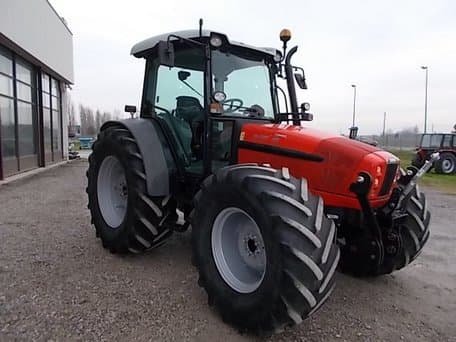

SAME Silver3 110

Last Updated: June 2024

Overview

The SAME Silver3 110 is a utility tractor designed for various farming duties. Equipped with a sturdy chassis featuring 4x4 MFWD 4WD, it ensures reliable performance across different terrains. It leverages a powerful Deutz turbocharged diesel engine, capable of delivering 109 horsepower and a peak torque of 295 lb-ft at 1400 RPM. The liquid-cooled 4-cylinder engine, with a displacement of 246.4 cubic inches and a bore and stroke of 3.98x4.96 inches, operates efficiently with a rated RPM of 2100. This tractor offers an advanced transmission system, specializing in a 60-speed, three-speed power shift, providing operators with a wide range of speed options for various tasks. The Silver3 110 possesses a significant ground clearance of 19.7 inches and variable front and rear tread settings for adaptable field operations. The tractor's dimensions and weight range make it a robust and versatile machine suitable for a variety of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 109

Transmission: Three-speed power shift

Drive Type: 4WD

Operating Weight: 9259 to 9700

Fuel Type: Diesel

SAME Silver3 110 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Excellent
Greater than 92% of similar tractors.

Technical Specifications

Engine

Manufacturer
Deutz
Model
-
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
246.4
Bore (in)
3.98
Stroke (in)
4.96
Rated RPM
2100
Power Output (hp)
109

Transmission

Type
Three-speed power shift
Forward Gears
60
Reverse Gears
60
Total Gears
60

Dimensions

Length (in)
157.1 for PS model, 163.4 for CVT model (assumed based on given data)
Width (in)
80.7
Height (in)
104.7
Operating Weight (lb)
9259 to 9700

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
