SAME Rubin 180

Last Updated: June 2024

Overview

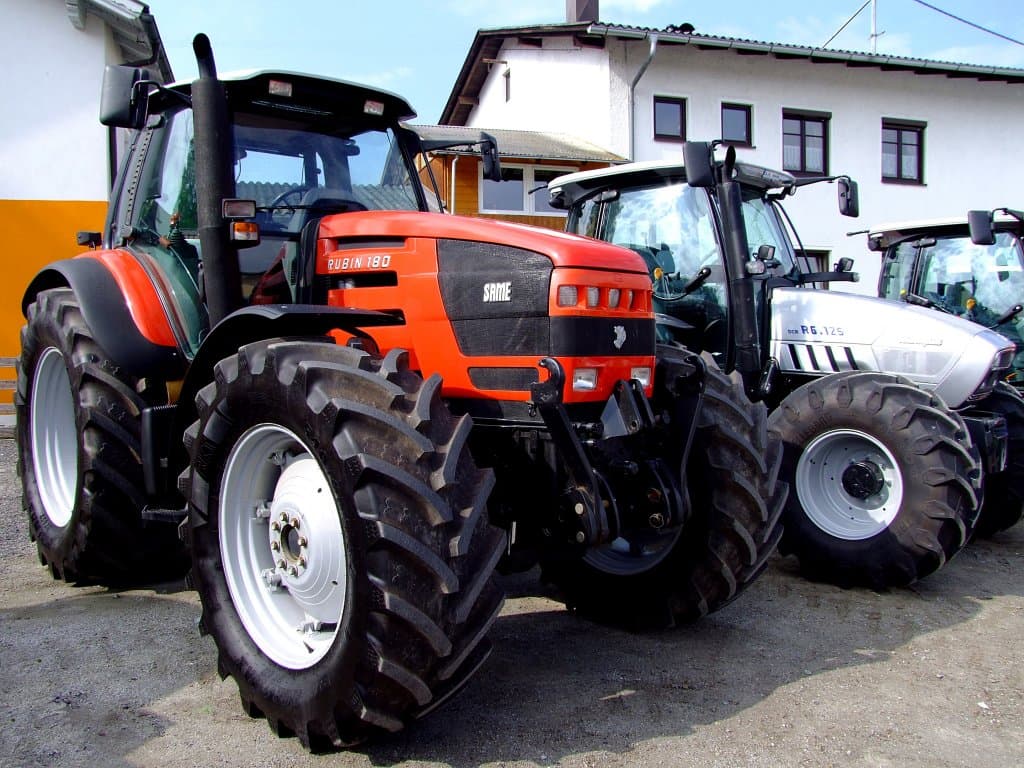

The SAME Rubin 180 tractor is designed with a 4x4 MFWD 4WD chassis and is equipped with a turbocharged diesel engine produced by SAME. This robust engine features six cylinders and has a displacement of 366.12 cubic inches (6.0 liters), delivering a power output of 180 horsepower at a rated RPM of 2350. The tractor has an 18-speed transmission with an equal number of forward and reverse gears to help with varying agricultural tasks. A significant wheelbase of 112.20 inches provides stability, while the weight of the tractor is 15655 pounds, indicating a sturdy build suitable for heavy-duty operations. The front and rear tire sizes are 16.9R34 and 20.8R42 respectively, which complement the tractor's substantial height of 116.93 inches and contribute to its commanding presence and performance in the field.
Show more...

Key Specifications

Power Output: 180

Drive Type: 4WD

Operating Weight: 15655

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
6
Displacement (ci)
366.12
Bore (in)
4.1338
Stroke (in)
4.54
Rated RPM
2350
Power Output (hp)
180

Transmission

Type
-
Forward Gears
18
Reverse Gears
18
Total Gears
-

Dimensions

Length (in)
-
Width (in)
-
Height (in)
116.93
Operating Weight (lb)
15655

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
34
Front Tire Width (in)
-
Rear Tire Diameter (in)
42
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
