SAME Row Crop 85

Last Updated: June 2024

Overview

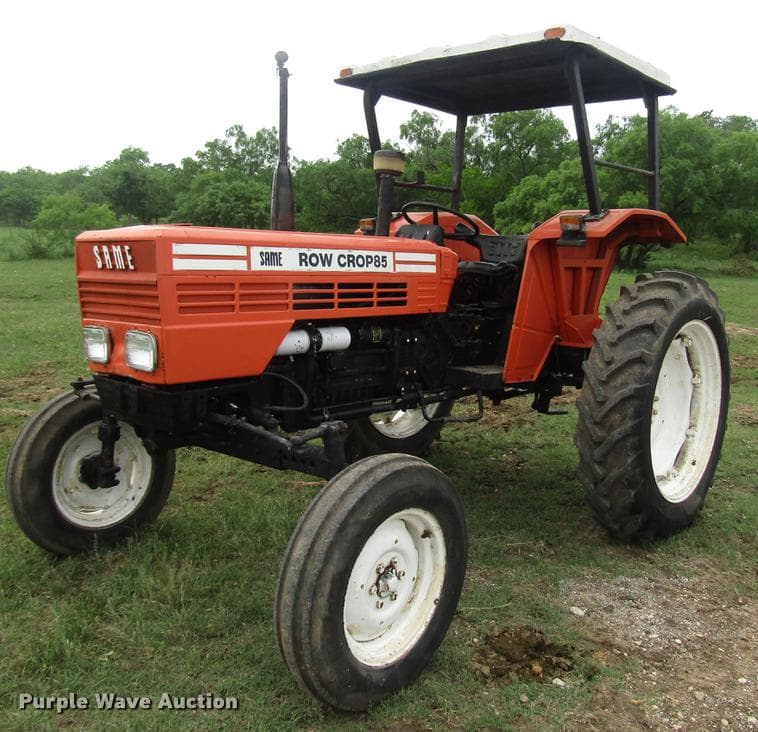

The SAME Row Crop 85 is a high-clearance tractor, designed for agricultural applications requiring additional ground clearance. It's built with a durable air-cooled 4-cylinder SAME 1054P diesel engine, which outputs 83 horsepower and is known for its direct-injection fuel system. With a 4x2 2WD chassis setup, this tractor can offer significant maneuverability on the field and is often appreciated for its power steering that enhances the operator's control over the machine. The transmission is a 12-speed synchronized system allowing for a wide range of speeds and efficient fieldwork. Notable physical dimensions include an overall length of 155.5 inches for the 2WD model and an impressive ROPS height of 104.7 inches, ensuring the operator is well-protected. The tractor exhibits varying wheelbase measurements, with the 2WD version standing at 92.9 inches, which impacts its stability and operation in different cropping situations.
Show more...

Key Specifications

Category: Utility, High-Clearance

Power Output: 83

Transmission: Synchronized

Drive Type: 2WD

Operating Weight: 6796 (2WD), 7519 (4WD)

Fuel Type: Diesel

SAME Row Crop 85 vs. Similar Tractors

Power Output
Above Average
Greater than 72% of similar tractors.
Operating Weight
Above Average
Greater than 79% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1054P
Cooling Type
Air-cooled
Cylinder Orientation
Inline
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural-aspirated
Cylinders
4
Displacement (ci)
253.5
Bore (in)
4.134
Stroke (in)
4.724
Rated RPM
2300
Power Output (hp)
83

Transmission

Type
Synchronized
Forward Gears
12
Reverse Gears
12
Total Gears
-

Dimensions

Length (in)
155.5 (2WD), 154.3 (4WD)
Width (in)
85.3
Height (in)
104.7 (ROPS)
Operating Weight (lb)
6796 (2WD), 7519 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
II
Hitch Category
-
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS
Starter Type
Electric
Brake Type
-
Hydraulic System Type
Open Center
