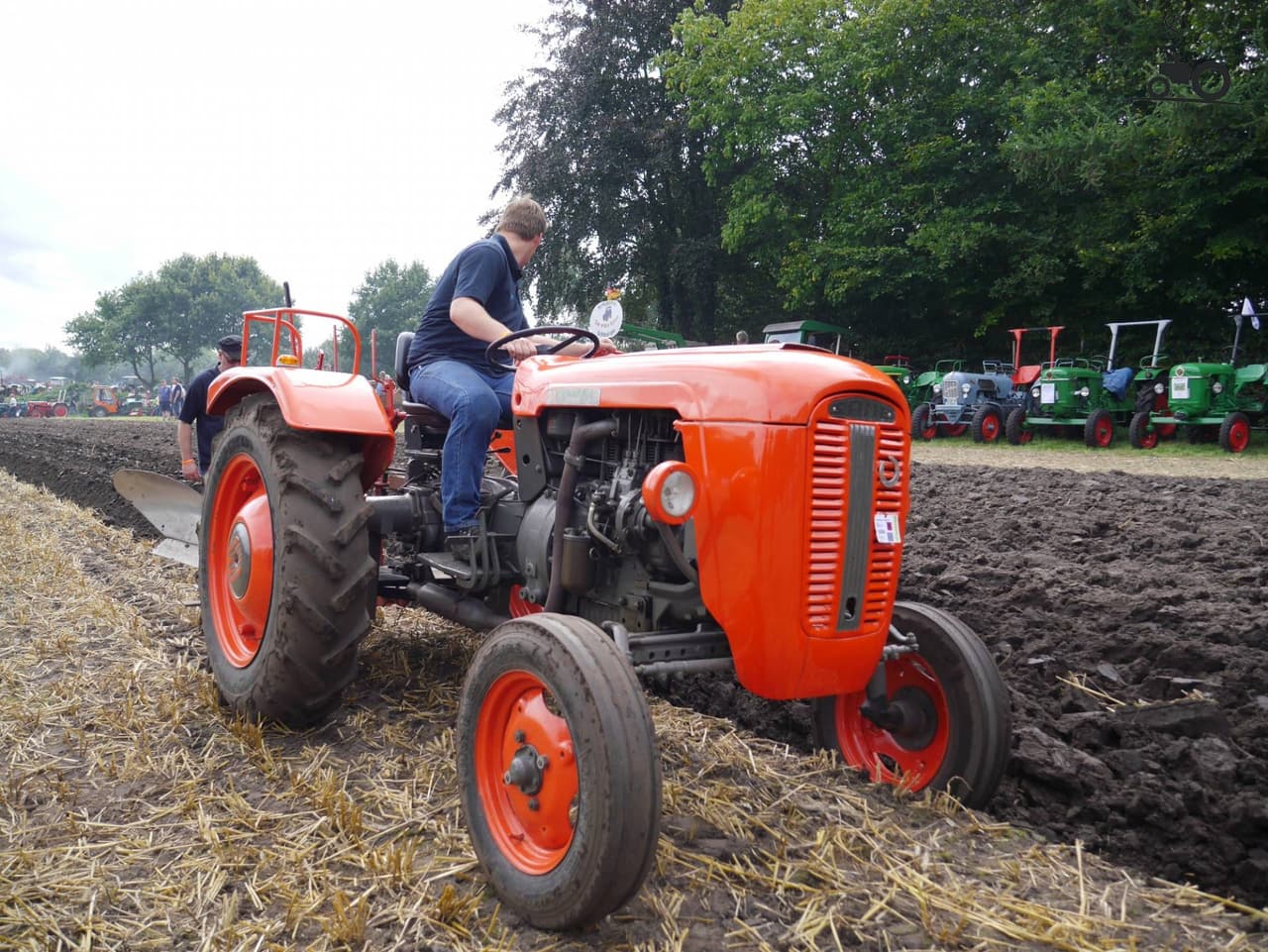

SAME Puledro

Last Updated: June 2024

Overview

The SAME Puledro is a 2WD utility tractor, powered by a SAME DA 1152, 35 hp diesel engine. It features a 4x2 2WD chassis with a gear transmission system boasting 6 forward gears and 2 reverse gears. The air-cooled, 2-cylinder engine has a displacement of 151.95 ci with a bore and stroke of 4.53x4.72 inches. Standard agriculture tires equip this model with front treads measuring 5.50 inches in width and 16 inches in diameter, with sizable rear treads though specifics are not provided. This tractor was designed with a 2WD wheelbase of 72.6 inches and comes in at a length of 108.3 inches and a width of 62.1 inches. The Puledro tractor has an operational weight range from 3263 to 3549 pounds, providing considerable heft for various agricultural tasks. Specific details about the tractor's manufacture start and end years, hitch systems, PTO speeds, and hydraulic systems are not available. This narrative describes the SAME Puledro focusing on its technical specifications and agricultural capabilities.
Show more...

Key Specifications

Power Output: 35

Transmission: Gear

Drive Type: 2WD

Operating Weight: 3263 to 3549

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
DA 1152
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
151.95
Bore (in)
4.53
Stroke (in)
4.72
Rated RPM
-
Power Output (hp)
35

Transmission

Type
Gear
Forward Gears
6
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
108.3
Width (in)
62.1
Height (in)
56.7
Operating Weight (lb)
3263 to 3549

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16
Front Tire Width (in)
5.5
Rear Tire Diameter (in)
28
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
