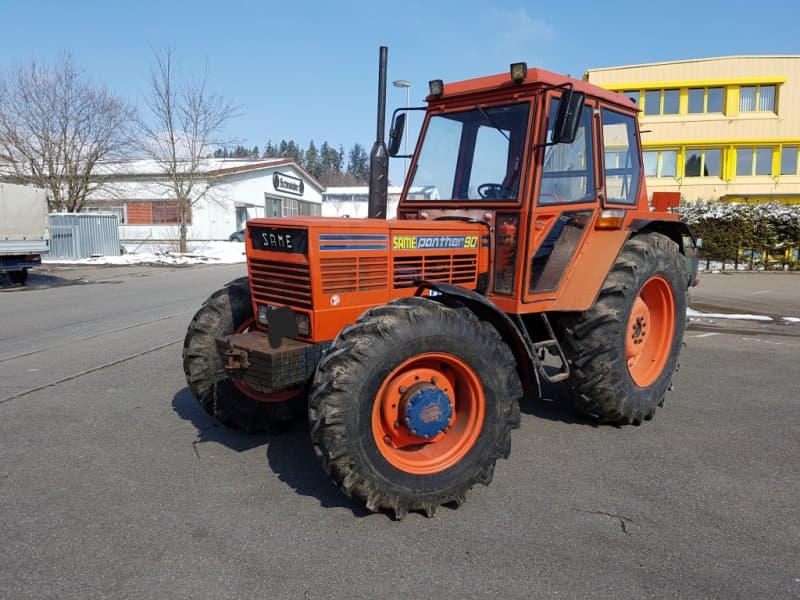

SAME Panther 90

Last Updated: June 2024

Overview

The SAME Panther 90 is a tractor designed with a 4x2 2WD chassis. It is powered by a SAME 5-cylinder diesel engine capable of delivering 90 hp with an engine displacement of 276 cubic inches. The manual transmission in the Panther 90 provides 12 forward and 3 reverse gears, tailored for a range of tasks from plowing to hauling. The tractor features a wheelbase of 98.42 inches which contributes to its stability. Regarding dimensions, it has a length of 161.42 inches and a height of 110.24 inches, while its operating weight stands at 8158 pounds, suitable for a variety of farm operations. As far as tires are concerned, it wears agricultural tires sized 7.50-18 on the front and 18.4-34 on the rear, supporting adequate traction in various field conditions. Unfortunately, additional details such as operable years, steering type, and hitch specifics remain unknown.
Show more...

Key Specifications

Power Output: 90

Transmission: Manual

Drive Type: 2WD

Operating Weight: 8158

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
5
Displacement (ci)
276
Bore (in)
3.8583
Stroke (in)
4.72
Rated RPM
2190
Power Output (hp)
90

Transmission

Type
Manual
Forward Gears
12
Reverse Gears
3
Total Gears
-

Dimensions

Length (in)
161.42
Width (in)
-
Height (in)
110.24
Operating Weight (lb)
8158

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
