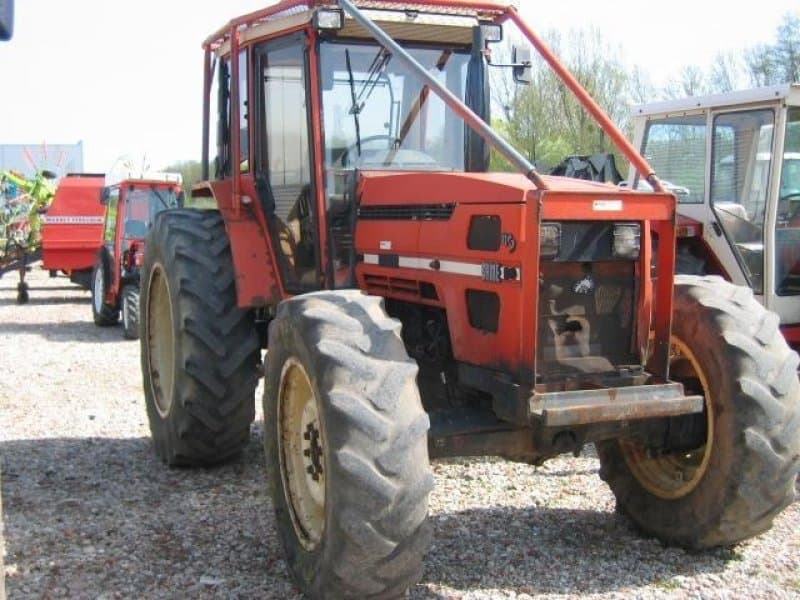

SAME Laser 110

Last Updated: June 2024

Overview

The SAME Laser 110 is a versatile utility tractor equipped with a SAME 1006 six-cylinder air-cooled diesel engine that generates 110 horsepower at 2200 RPM. It boasts a series of transmission options including synchronized, two-speed power shift, and creeper, with the most advanced offering 24 forward and 12 reverse gears. The tractor comes in both 2WD and 4WD configurations, with a range of wheelbases, ground clearances, and lengths to suit varying agricultural needs. Weights range from 9127 lbs for a 2WD model with ROPS to 10758 lbs for a 4WD model with a cab. This tractor is adaptable with the availability of both ROPS and a Cab for the operator station, allowing for customization based on the user's preference and working conditions. It provides a solid and reliable choice for those requiring a productive machine that can comfortably handle a multitude of farm tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 110

Transmission: Synchronized, Two-speed power shift, Creeper

Operating Weight: 10758 (assumed highest from available data)

Fuel Type: Diesel

SAME Laser 110 vs. Similar Tractors

Power Output
Above Average
Greater than 85% of similar tractors.
Operating Weight
Average
Greater than 64% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
SAME 1006
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated (assumed, as no indication of forced induction was provided)
Cylinders
6
Displacement (ci)
345
Bore (in)
3.937
Stroke (in)
4.72
Rated RPM
2200
Power Output (hp)
110

Transmission

Type
Synchronized, Two-speed power shift, Creeper
Forward Gears
24 (assumed highest forward gear count from available data)
Reverse Gears
12 (assumed highest reverse gear count from available data)
Total Gears
-

Dimensions

Length (in)
166.3 (assumed highest from available data)
Width (in)
83.5
Height (in)
-
Operating Weight (lb)
10758 (assumed highest from available data)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
Unknown (air-cooled engines do not have a coolant capacity)
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (Agriculture)
Manufacture - End Year
-
Hitch Type
Category II
Hitch Category
Category 3 (assumed from hitch type II)
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
ROPS, Cab (both listed, assuming both options available)
Starter Type
Electric (inferred from "Engine - Starter volts")
Brake Type
-
Hydraulic System Type
-
