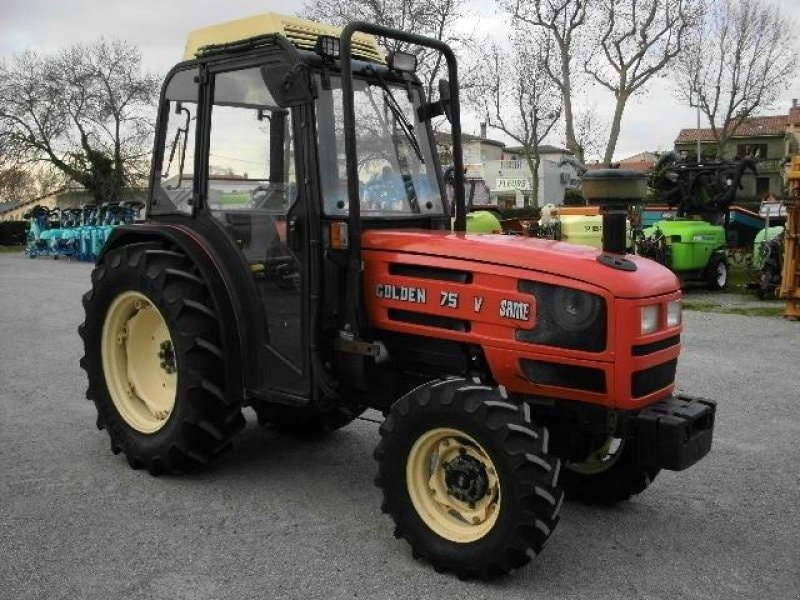

SAME Golden 75

Last Updated: June 2024

Overview

The SAME Golden 75 is an Orchard/Vineyard tractor designed for specialized agricultural tasks. With its 2WD 4x2 chassis and power steering, it offers good maneuverability in tight spaces common in orchard or vineyard settings. Key engine specifications include an air-cooled diesel-powered SAME 1000.4A engine with 4 cylinders and a displacement of 244 ci, producing 73.8 hp at a rated RPM of 2350. The transmission is synchronized, capable of up to 45 forward and reverse gears with options for creeper and Agroshift for intricate speed control. This model's weight varies between 4850 to 5622 pounds, indicating there are different configurations available, such as optional ROPS or Cab types, affecting its operating weight. The tractor's tire options suggest adaptability to different terrains and usage scenarios. The Golden 75 could be an efficient workhorse for its targeted environments, providing robust performance with its substantial power output at lower engine speeds.
Show more...

Key Specifications

Category: Agricultural, Orchard/Vineyard

Power Output: 73.8

Transmission: Synchronized (with optional creeper and Agroshift)

Drive Type: 2WD

Operating Weight: 4850 to 5622

Fuel Type: Diesel

SAME Golden 75 vs. Similar Tractors

Power Output
Average
Greater than 47% of similar tractors.
Operating Weight
Above Average
Greater than 80% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.4A
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
-
Cylinders
4
Displacement (ci)
244
Bore (in)
4.13
Stroke (in)
4.55
Rated RPM
2350
Power Output (hp)
73.8

Transmission

Type
Synchronized (with optional creeper and Agroshift)
Forward Gears
45 (assuming the highest provided number is correct)
Reverse Gears
45 (assuming the highest provided number is correct)
Total Gears
-

Dimensions

Length (in)
122.1
Width (in)
47.2
Height (in)
Unknown (operating height may vary based on the tires and whether it's ROPS or cab)
Operating Weight (lb)
4850 to 5622

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
16 (from 6.50/16, assuming aspect ratio 100%)
Front Tire Width (in)
6.5
Rear Tire Diameter (in)
24 (from 380/70R24, assuming aspect ratio 70%)
Rear Tire Width (in)
14.96 (converted from 380 mm to inches)
Front/Rear Rim Diameter (in)
-
Tire Type
Ag (agricultural)
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
Rear
Hitch Capacity (lb)
-
Operator Station Type
Optional ROPS or Cab
Starter Type
-
Brake Type
-
Hydraulic System Type
-
