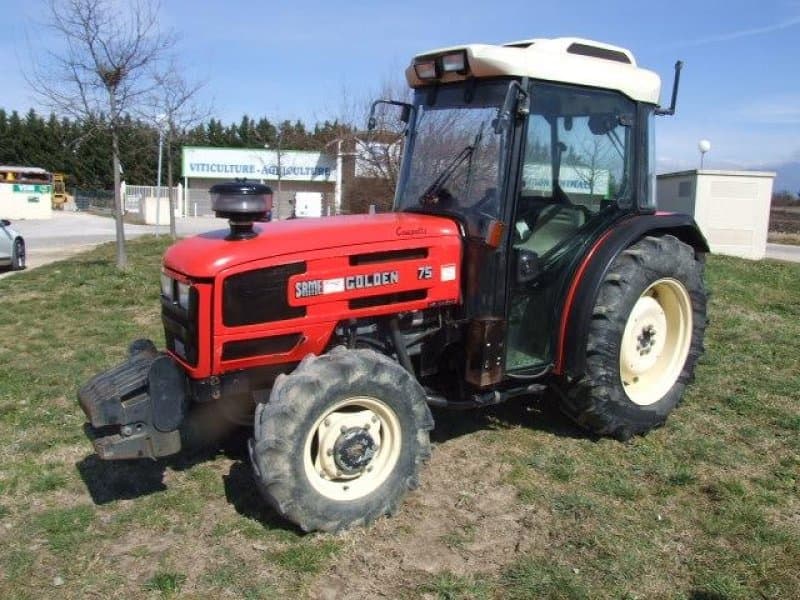

SAME Frutteto II 75

Last Updated: June 2024

Overview

The SAME Frutteto II 75 is a two-wheel drive, utility-focused tractor that has been produced with an emphasis on simplicity and reliability. It is powered by a SAME 1000.4A, 4-cylinder diesel engine, with a displacement of 244 cubic inches, delivering 75 horsepower (55.9 kW) at a rated 2350 RPM. An air-cooled engine ensures durability and ease of maintenance. The tractor is equipped with a partially synchronized transmission, providing 12 forward gears, enabling a variety of speed options suitable for numerous tasks. With a robust chassis and a powerful steering system, this tractor is designed for effectiveness in a broad range of agricultural applications, particularly in orchards and similar settings where maneuverability and size are important factors. The tractor dimensions and operating weight indicate that it's a sizeable machine, yet designed to be nimble enough for work between tight rows and under canopy. The specifications provided reflect its utility nature and capability for traditional farming tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 75

Transmission: Partially synchronized

Drive Type: 2WD

Operating Weight: 5071 (2WD) / 5468 (4WD)

Fuel Type: Diesel

SAME Frutteto II 75 vs. Similar Tractors

Power Output
Average
Greater than 68% of similar tractors.
Operating Weight
Excellent
Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.4A
Cooling Type
Air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
244
Bore (in)
4.13
Stroke (in)
4.54
Rated RPM
2350
Power Output (hp)
75

Transmission

Type
Partially synchronized
Forward Gears
12
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
140
Width (in)
58.75
Height (in)
92.5
Operating Weight (lb)
5071 (2WD) / 5468 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
