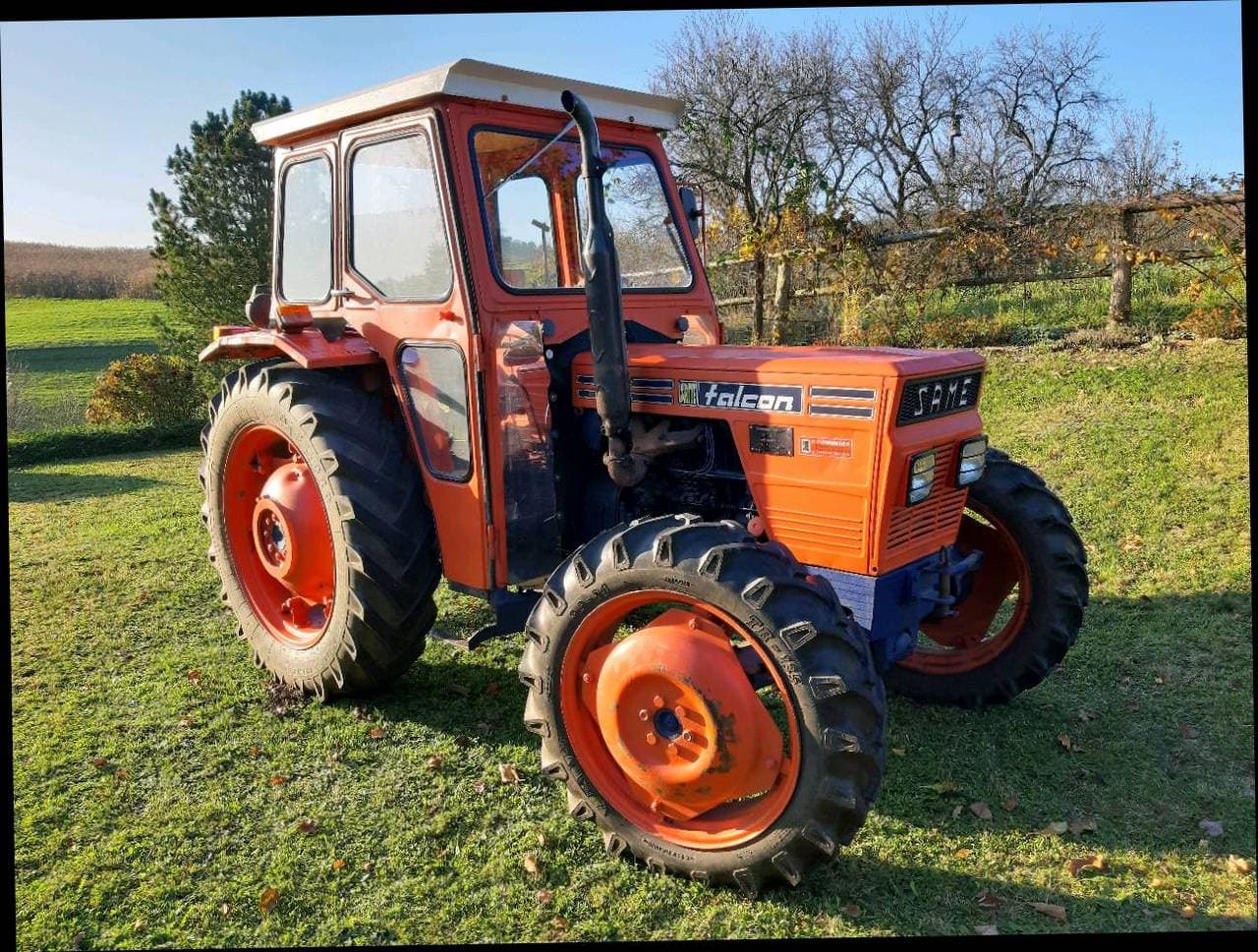

SAME Falcon 50

Last Updated: June 2024

Overview

The SAME Falcon 50 is a utility tractor that comes with a 4x2 2WD chassis. It features a manual transmission with 8 forward and 4 reverse gears. The tractor is powered by a SAME 3-cylinder diesel engine with a displacement of 165.67 cubic inches, a bore of 3.8583 inches, stroke of 4.72 inches, and a rated RPM of 2150, leading to a power output of 50 hp (37.3 kW). The wheelbase stands at 76.77 inches, and the overall length is 128.74 inches. Standing 89.37 inches tall, this model has an operating weight starting at 4740 pounds. The front and rear tires are sized at 6.00-16 and 13.6-28 respectively, which hints at its capability for a variety of agricultural tasks. However, details such as the specific steering type, hitch capabilities, and hydraulic system type, among others, are not provided in the data given and would require further research or inquiry with the manufacturer.
Show more...

Key Specifications

Category: Utility

Power Output: 50

Transmission: Manual

Drive Type: 2WD

Operating Weight: 4740

Fuel Type: Diesel

SAME Falcon 50 vs. Similar Tractors

Power Output
Average
Greater than 49% of similar tractors.
Operating Weight
Average
Greater than 42% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated
Cylinders
3
Displacement (ci)
165.67
Bore (in)
3.8583
Stroke (in)
4.72
Rated RPM
2150
Power Output (hp)
50

Transmission

Type
Manual
Forward Gears
8
Reverse Gears
4
Total Gears
-

Dimensions

Length (in)
128.74
Width (in)
-
Height (in)
89.37
Operating Weight (lb)
4740

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
