SAME Explorer II 90

Last Updated: June 2024

Overview

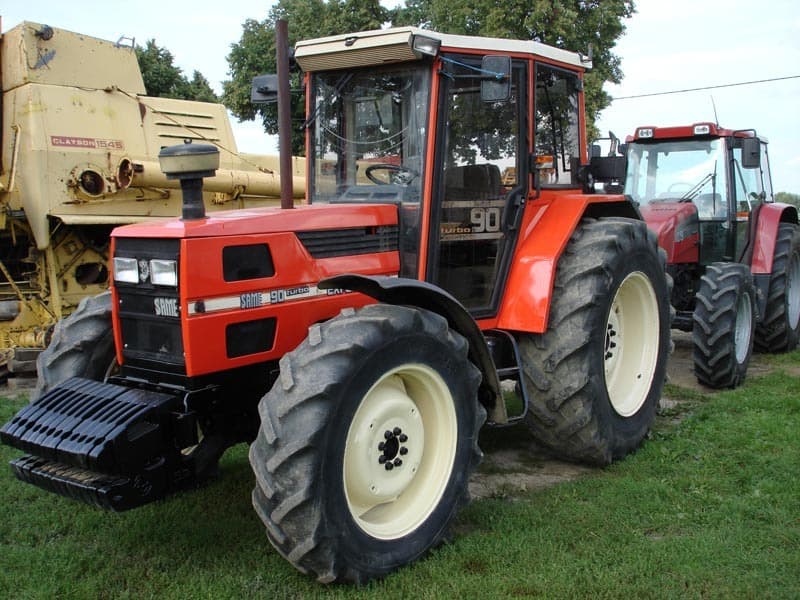

The SAME Explorer II 90 is a mid-size tractor that was designed for a wide range of agricultural tasks. Its robust SAME 1000.4 AT engine is a 4-cylinder, air-cooled, turbocharged diesel unit with a displacement of 244 cubic inches, capable of delivering 87.2 horsepower at 2500 rpm. The tractor boasts a tailor-made Syncro Power transmission which includes a two-speed power shift feature, providing a total count of 40 gears when combining forward and reverse speeds. This versatile tractor is available in both 2WD and 4WD variants and offers a choice of standard and optional tire configurations to suit various farming needs. With a relatively significant operating weight, the Explorer II 90 is built to handle substantial workloads and provide lasting performance for agricultural productivity.
Show more...

Key Specifications

Power Output: 87.2

Transmission: two-speed power shift

Operating Weight: 6791 (2WD) / 7563 (4WD)

Fuel Type: diesel

Technical Specifications

Engine

Manufacturer
SAME
Model
1000.4 AT
Cooling Type
air-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
diesel
Induction Type
turbocharged
Cylinders
4
Displacement (ci)
244
Bore (in)
4.13
Stroke (in)
4.54
Rated RPM
2500
Power Output (hp)
87.2

Transmission

Type
two-speed power shift
Forward Gears
-
Reverse Gears
-
Total Gears
40

Dimensions

Length (in)
160.63
Width (in)
-
Height (in)
103.54
Operating Weight (lb)
6791 (2WD) / 7563 (4WD)

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
-
Drive Type
-
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
Electric Starter
Brake Type
-
Hydraulic System Type
-
