SAME Dorado 76

Last Updated: June 2024

Overview

The SAME Dorado 76 is a 2-wheel drive tractor with a 4x2 chassis configuration, powered by a 70 hp SAME diesel engine. It features a displacement of 244 cubic inches and an engine rated at 2200 RPM. The transmission houses 16 forward and 8 reverse gears, tailored for a variety of tasks on the field. This model has a wheelbase of 88.2 inches, a length of 140.16 inches, and stands 95.67 inches tall. In terms of operating weight, it tips the scales at 5953 lbs, making it a solid choice for a range of agricultural duties. Tire specifications around the rear are based on the 720/70R30 sizing, and while front tire specifics aren’t provided, the powerful rear tires contribute to the tractor's performance on diverse terrains.

Key Specifications

Power Output: 70

Drive Type: 2WD

Operating Weight: 5953

Fuel Type: Diesel

Image Gallery

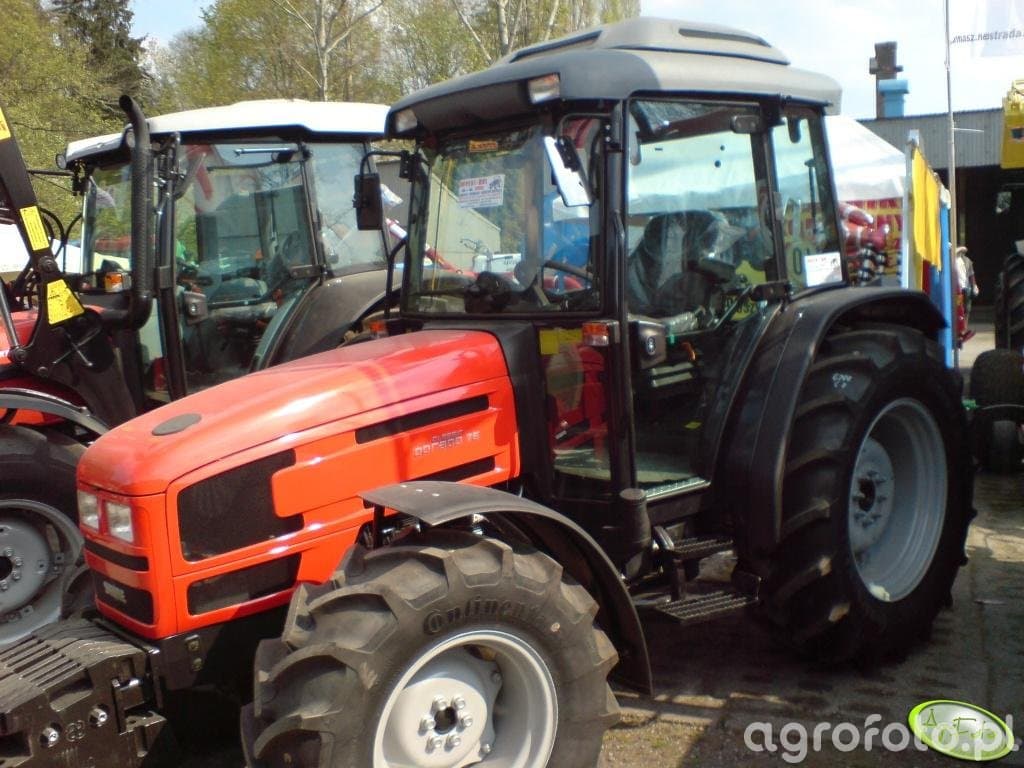

SAME Dorado 76 Tractor

Technical Specifications

Engine

Manufacturer: SAME
Model: -
Cooling Type: -
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: -
Cylinders: 4
Displacement (ci): 244
Bore (in): -
Stroke (in): -
Rated RPM: 2200
Power Output (hp): 70

Transmission

Type: -
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 140.16
Width (in): -
Height (in): 95.67
Operating Weight (lb): 5953

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2
Drive Type: 2WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): 30 (Assumption based on rear tire specification)
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: -
Brake Type: -
Hydraulic System Type: -
