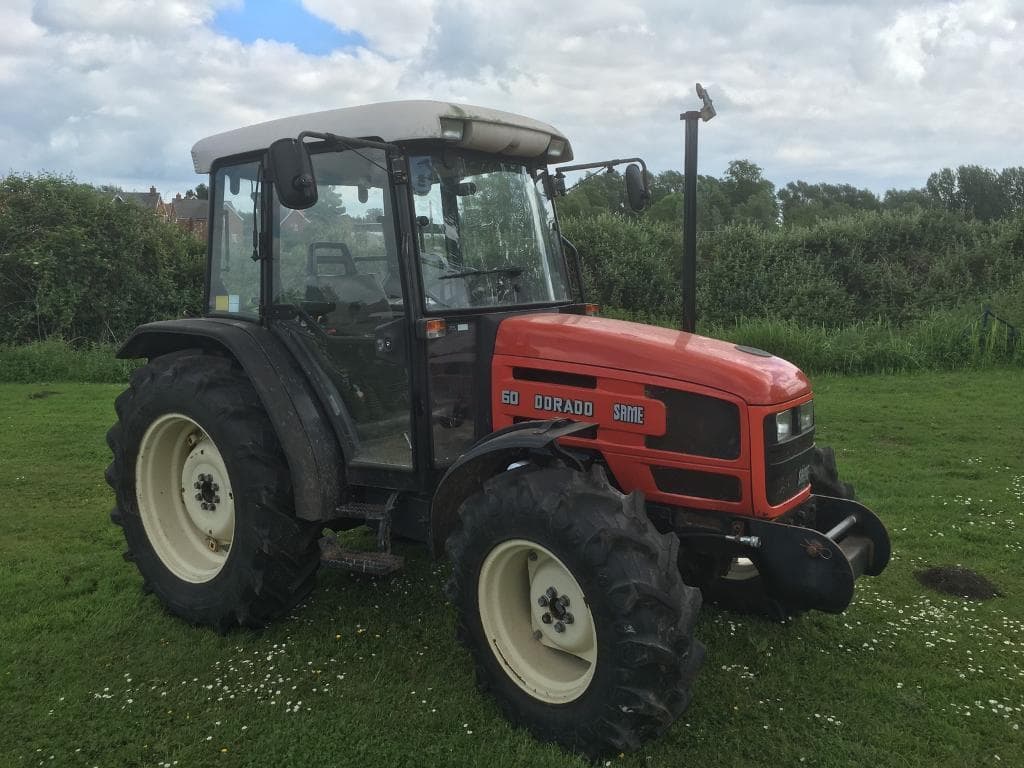

SAME Dorado 60

Last Updated: June 2024

Overview

The SAME Dorado 60 is a utility tractor noted for its simple 4x2 2WD chassis and three-cylinder diesel engine, which delivers a power output of 60 hp. With a wheelbase of 83.1 inches and a weight of 5622 lbs, this tractor is designed for a variety of general farm tasks. It features a heavy-duty 30 forward and 15 reverse gear transmission which provides ample speed options for different types of work. The tractor's overall length measures 146.46 inches, and it stands 94.49 inches tall, showcasing a profile suitable for utility work in various environments. Equipped with standard agricultural tires and boasting an engine with a displacement of 183 cubic inches, the Dorado 60 balances power and maneuverability for a range of agricultural applications.
Show more...

Key Specifications

Category: Utility

Power Output: 60

Drive Type: 2WD

Operating Weight: 5622

Fuel Type: Diesel

SAME Dorado 60 vs. Similar Tractors

Power Output
Average
Greater than 58% of similar tractors.
Operating Weight
Average
Greater than 46% of similar tractors.

Technical Specifications

Engine

Manufacturer
SAME
Model
-
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally Aspirated (Assumed)
Cylinders
3
Displacement (ci)
183
Bore (in)
4.134
Stroke (in)
4.54
Rated RPM
2350
Power Output (hp)
60

Transmission

Type
-
Forward Gears
30
Reverse Gears
15
Total Gears
-

Dimensions

Length (in)
146.46
Width (in)
-
Height (in)
94.49
Operating Weight (lb)
5622

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
-
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
