SAME Argon 50

Last Updated: June 2024

Overview

The SAME Argon 50 is a versatile utility tractor that was manufactured between 1993 and 2001. It can be configured in either 2WD or 4WD, with a total weight ranging between 4277 and 4740 pounds. It is powered by a 3.0 L, three-cylinder diesel engine that delivers 50 hp at 2350 rpm. With 16 forward and 8 reverse gears, as well as optional creeper gears, the Argon 50 offers a wide range of speeds suitable for various farming and utility applications. The tractor is also equipped with a rear three-point hitch capable of lifting 6,527 lbs and standard agricultural tires to meet the demands of rugged terrain. The open operator station incorporates ROPS for safety, ensuring that the Argon 50 is both practical and reliable for different types of agricultural work.

Key Specifications

Category: Utility

Power Output: 50

Transmission: Mechanical shuttle; Creeper (optional)

Drive Type: 2WD or 4WD

Operating Weight: 4277 (2WD) / 4740 (4WD)

Fuel Type: Diesel

Image Gallery

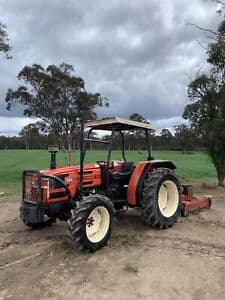

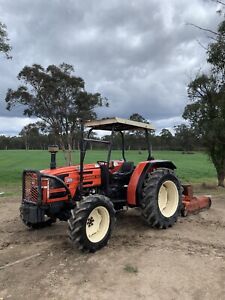

SAME Argon 50 Tractor

SAME Argon 50 vs. Similar Tractors

Power Output

Average

Greater than 49% of similar tractors.

Hitch Capacity

Below Average

Greater than 12% of similar tractors.

Operating Weight

Excellent

Greater than 96% of similar tractors.

Technical Specifications

Engine

Manufacturer: SAME
Model: 1000.3 A
Cooling Type: Liquid-cooled
Cylinder Orientation: Inline
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally aspirated
Cylinders: 3
Displacement (ci): 183.1
Bore (in): 4.134
Stroke (in): 4.54
Rated RPM: 2350
Power Output (hp): 50

Transmission

Type: Mechanical shuttle; Creeper (optional)
Forward Gears: 16
Reverse Gears: 8
Total Gears: -

Dimensions

Length (in): 133.1
Width (in): 64.6
Height (in): 88.2
Operating Weight (lb): 4277 (2WD) / 4740 (4WD)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): 540
PTO Speed 2 (rpm): 750
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD or 4x4 MFWD 4WD
Drive Type: 2WD or 4WD
Steering Type: -
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: Ag
Manufacture - End Year: 2001
Hitch Type: Three-Point Hitch
Hitch Category: Category II
Hitch Position: Rear
Hitch Capacity (lb): 6,527 lbs
Operator Station Type: Open with ROPS
Starter Type: Electric
Brake Type: -
Hydraulic System Type: -
