RK Tractors RK37HC

Last Updated: June 2024

Overview

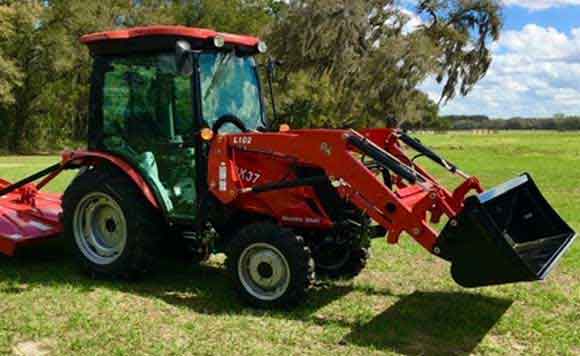

The RK37HC by RK Tractors is a compact utility tractor that offers versatility and power. It is equipped with a Yanmar 3TNV88-CR diesel engine that produces 37.4 horsepower, with a displacement of 100.2 cubic inches, and a four-wheel-drive (4x4 MFWD 4WD) chassis with power steering. The engine features a common rail direct injection system and operates at a rated RPM of 3000. This tractor is designed to support a variety of tire configurations, including standard agriculture, lawn/turf, and industrial options. With a height of 92.5 inches, length of 128 inches, and a width of 58 inches, the RK37HC maintains a fairly compact footprint with an operating weight of 3450 lbs. It features a hydrostatic transmission with an infinite (3-range) selection of forward and reverse gears. The cab provides an operator with protection from the elements. The exact hydraulic system type, power take-off (PTO) details, and additional features of the RK37HC are not specified in the data available. This model is tailored to meet the needs of farmers and landowners who require a reliable and efficient tractor for diverse tasks.
Show more...

Key Specifications

Category: Utility

Power Output: 37.4

Transmission: Hydrostatic

Drive Type: 4WD

Operating Weight: 3450

Fuel Type: Diesel

RK Tractors RK37HC vs. Similar Tractors

Power Output
Average
Greater than 34% of similar tractors.
Operating Weight
Below Average
Greater than 30% of similar tractors.

Technical Specifications

Engine

Manufacturer
Yanmar
Model
3TNV88-CR
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Common rail direct injection
Cylinders
3
Displacement (ci)
100.2
Bore (in)
3.39
Stroke (in)
3.54
Rated RPM
3000
Power Output (hp)
37.4

Transmission

Type
Hydrostatic
Forward Gears
Infinite (3-range)
Reverse Gears
Infinite (3-range)
Total Gears
-

Dimensions

Length (in)
128
Width (in)
58
Height (in)
92.5
Operating Weight (lb)
3450

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
Unknown for standard ag tires; 28 for lawn/turf; Unknown for industrial
Front Tire Width (in)
Unknown for standard ag tires; 8.5 for lawn/turf; Unknown for industrial
Rear Tire Diameter (in)
24 for both standard ag and lawn/turf; 20 for industrial
Rear Tire Width (in)
11.2 for standard ag; 14 for lawn/turf; 16 for industrial
Front/Rear Rim Diameter (in)
-
Tire Type
Ag, Lawn/Turf, Industrial
Manufacture - End Year
-
Hitch Type
Rear Type I
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
Cab
Starter Type
Electric
Brake Type
-
Hydraulic System Type
-
