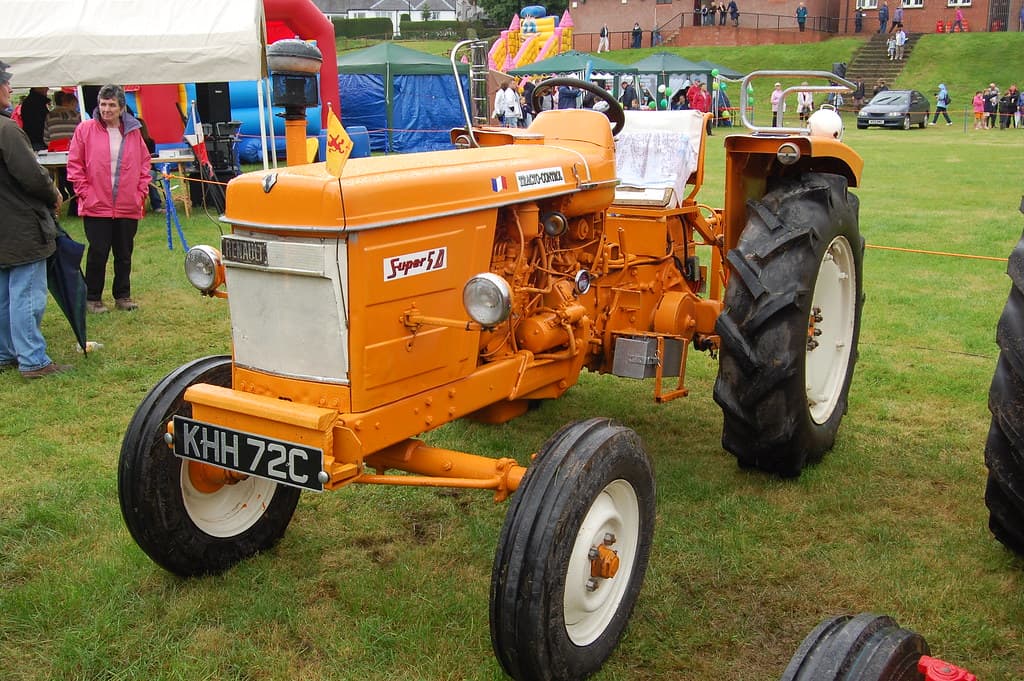

Renault Super 5D

Last Updated: June 2024

Overview

The Renault Super 5D is a 2WD utility tractor, noted for its mechanical steering and its simple yet robust design. With a 10-speed transmission and an additional 2 reverse gears, it offers versatility for a range of tasks. The Super 5D is powered by Renault's own diesel engine, model 709-30, which is a 3-cylinder engine providing 35 horsepower at a rated RPM of 2000. It has a displacement of 138.1 cubic inches, a bore and stroke of 3.858 inches and 3.875 inches respectively. This tractor stands out with its significant operating weight of 4,256 lbs which hints at its capability for more heavy-duty work within its classification. The specified wheelbase is 73.6 inches, and overall length of 129.1 inches, combined with a height of 89.0 inches, conform it as a medium-sized tractor suited for a range of agricultural tasks, especially traditional farm work where a dependable and mechanical machine is preferred.
Show more...

Key Specifications

Category: Utility

Power Output: 35

Drive Type: 2WD

Operating Weight: 4256

Fuel Type: Diesel

Renault Super 5D vs. Similar Tractors

Power Output
Average
Greater than 32% of similar tractors.
Operating Weight
Average
Greater than 39% of similar tractors.

Technical Specifications

Engine

Manufacturer
Renault
Model
709-30
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Natural
Cylinders
3
Displacement (ci)
138.1
Bore (in)
3.858
Stroke (in)
3.875
Rated RPM
2000
Power Output (hp)
35

Transmission

Type
-
Forward Gears
10
Reverse Gears
2
Total Gears
-

Dimensions

Length (in)
129.1
Width (in)
-
Height (in)
89
Operating Weight (lb)
4256

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
