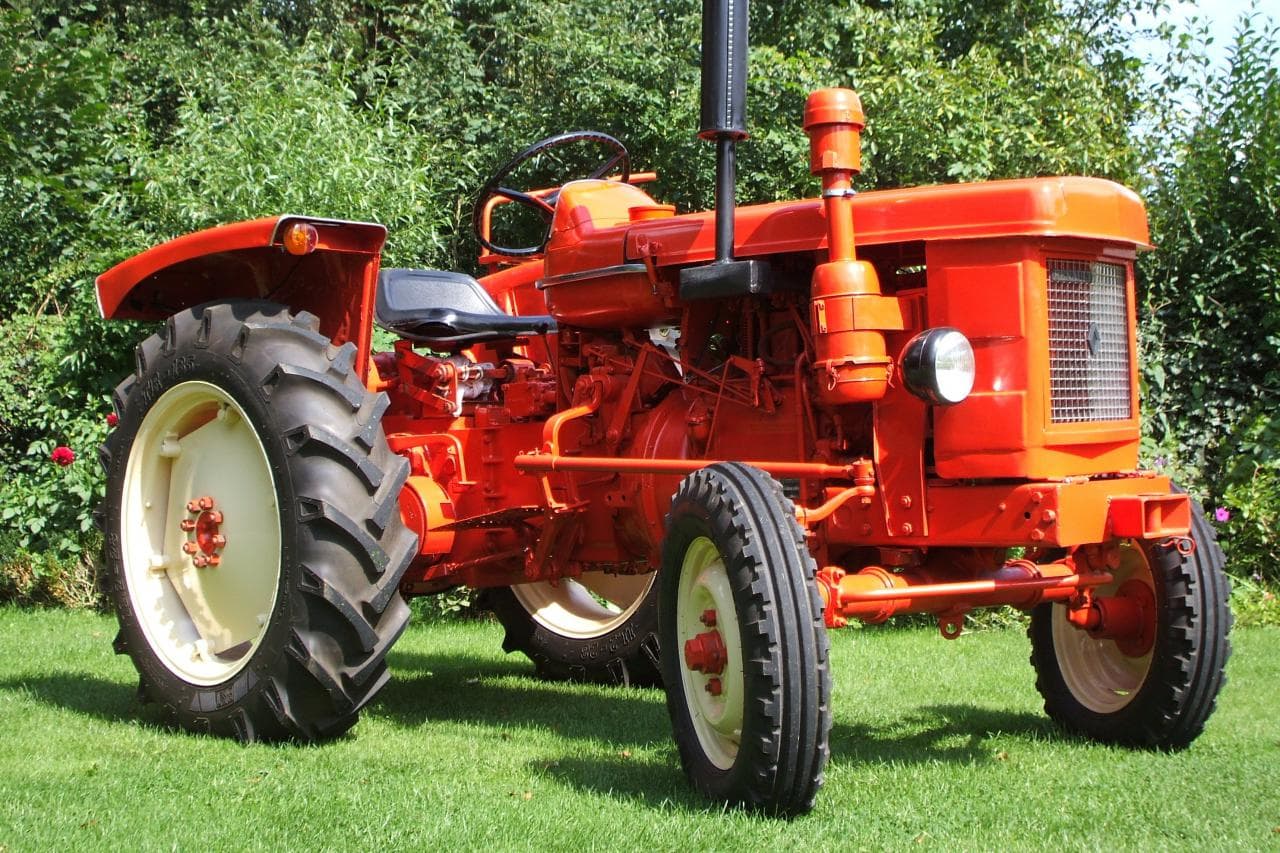

Renault Super 3D

Last Updated: June 2024

Overview

The Renault Super 3D is a conservative tractor boasting a straightforward design ideal for a variety of farming applications. It is equipped with a 24 horsepower, 2-cylinder diesel MWM D322-2 engine, which provides a decent balance of power for its class and efficient fuel usage. The mechanical steering system exemplifies the tractor’s simplicity in operation, catering to farmers who prefer traditional usability. It features a 4x2 2WD chassis, offering easier maneuverability on the flat terrains commonly found in small to medium-sized farms. With 6 forward gears and 1 reverse gear, operators can select the appropriate speeds for different tasks. The tractor's weight stands at 3903 lbs, reflecting its solid build and capacity for a variety of tasks. Additionally, its wheelbase of 68.1 inches affords stability during operation. Though specific details such as PTO speeds and hydraulic system type are not detailed, the Renault Super 3D remains a versatile workhorse suitable for an array of agricultural duties.
Show more...

Key Specifications

Power Output: 24

Drive Type: 2WD

Operating Weight: 3903

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
MWM
Model
D322-2
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
2
Displacement (ci)
110.4
Bore (in)
3.858
Stroke (in)
4.724
Rated RPM
2000
Power Output (hp)
24

Transmission

Type
-
Forward Gears
6
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
124.8
Width (in)
-
Height (in)
61.8
Operating Weight (lb)
3903

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
