Renault Super 3

Last Updated: June 2024

Overview

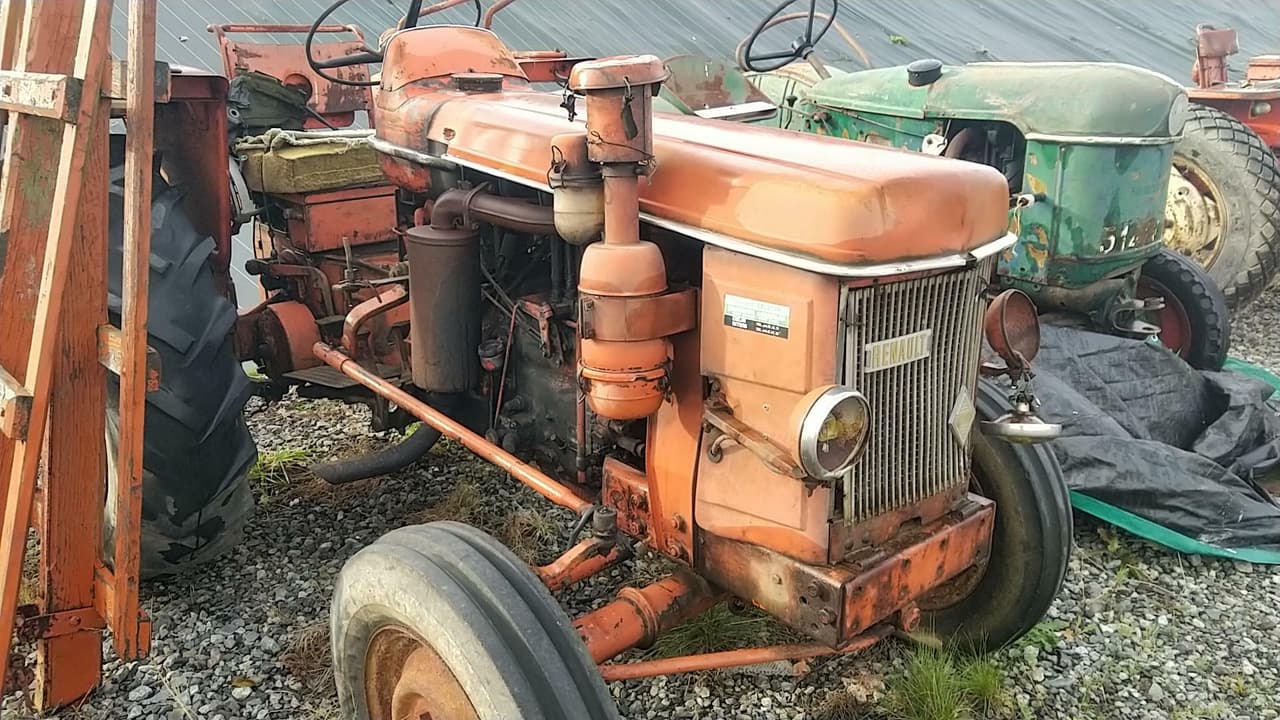

The Renault Super 3 is a utility tractor that was designed with practicality and versatility in mind. It is equipped with a 4x2 2WD chassis and mechanical steering which is suitable for a variety of tasks on the farm. The tractor is powered by an MWM AKD 112 Z 2-cylinder engine, with a displacement of 110.4 cubic inches, producing 25 hp at a rated RPM of 2000. Its manual transmission includes 6 forward gears and 1 reverse gear. It has a sturdy wheelbase of 67.7 inches, a length of 118.1 inches, and a height of 60.6 inches, with an operating weight of 3,263 lbs. The Renault Super 3 rides on agricultural tires with front and rear sizes of 5.50-16 and 11.2-28 respectively. Overall, this tractor serves as a reliable workhorse that can handle a variety of tasks on a smaller scale farm.
Show more...

Key Specifications

Category: Utility

Power Output: 25

Transmission: Manual

Drive Type: 2WD

Operating Weight: 3,263

Renault Super 3 vs. Similar Tractors

Power Output
Below Average
Greater than 18% of similar tractors.
Operating Weight
Poor
Greater than 1% of similar tractors.

Technical Specifications

Engine

Manufacturer
MWM
Model
AKD 112 Z
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
2
Displacement (ci)
110.4
Bore (in)
3.858
Stroke (in)
4.724
Rated RPM
2000
Power Output (hp)
25

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
118.1
Width (in)
-
Height (in)
60.6
Operating Weight (lb)
3,263

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
