Renault PE

Last Updated: June 2024

Overview

The Renault PE is a standard-tread tractor, recognized for its simplicity and utility in a variety of tasks. With a small 4-cylinder liquid-cooled gasoline engine, it provides a humble 20 horsepower and an engine displacement of 129 cubic inches. The manual steering system and gear transmission with 3 forward and 1 reverse gear are well-suited for the time it was manufactured. Operating at a rated RPM of 1700, this tractor delivers consistent performance for general-purpose applications. The basic construction without unnecessary complexity made this tractor a reliable tool for farmers. It also features a 4x2 2WD chassis and had a hand-crank starting mechanism—a testament to its early technology.

Key Specifications

Category: Utility, Standard Tread

Power Output: 20

Transmission: Gear

Drive Type: 2WD

Fuel Type: Gasoline

Image Gallery

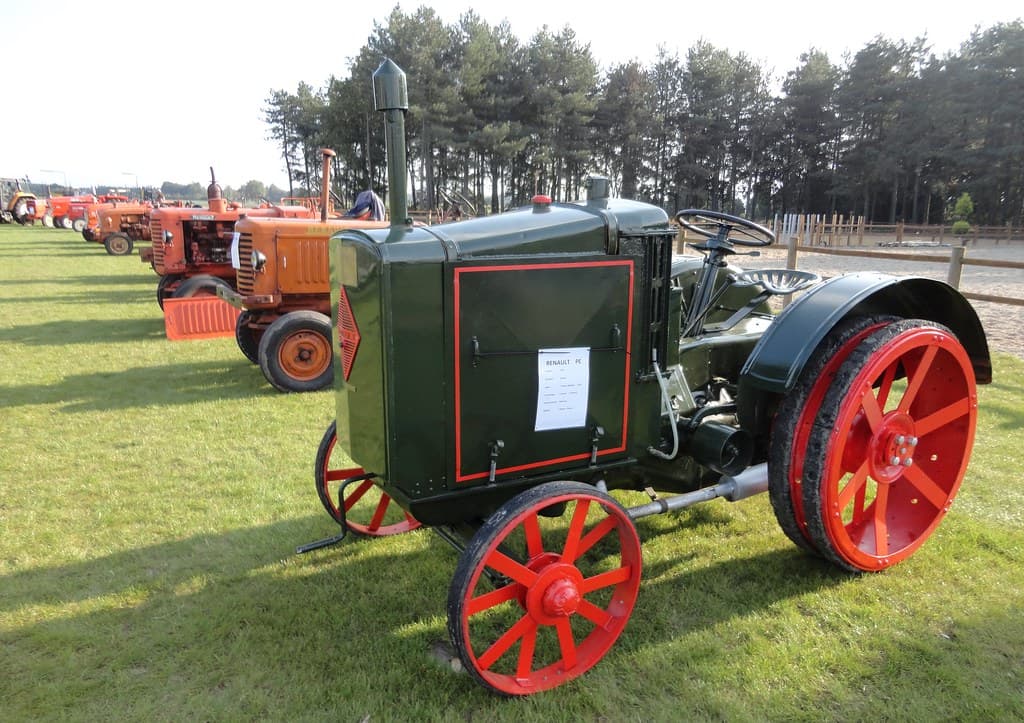

Renault PE Tractor

Renault PE vs. Similar Tractors

Power Output

Poor

Greater than 10% of similar tractors.

Technical Specifications

Engine

Manufacturer: Renault
Model: -
Cooling Type: Liquid-cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Gasoline
Induction Type: Naturally aspirated
Cylinders: 4
Displacement (ci): 129
Bore (in): 2.95
Stroke (in): 4.72
Rated RPM: 1700
Power Output (hp): 20

Transmission

Type: Gear
Forward Gears: 3
Reverse Gears: 1
Total Gears: -

Dimensions

Length (in): 113
Width (in): 65.2
Height (in): -
Operating Weight (lb): -

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Manual
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): -
Rear Tire Diameter (in): -
Rear Tire Width (in): -
Front/Rear Rim Diameter (in): -
Tire Type: -
Manufacture - End Year: -
Hitch Type: -
Hitch Category: -
Hitch Position: -
Hitch Capacity (lb): -
Operator Station Type: -
Starter Type: Hand-crank
Brake Type: -
Hydraulic System Type: -
