Renault N73

Last Updated: June 2024

Overview

The Renault N73 tractor is characterized by its simplicity and functional design. With a 20 hp MWM AKD 311 Z 2-cylinder engine, it is capable of performing a range of farming tasks. The tractor has a basic 4x2 2WD chassis and is steered mechanically, suitable for general agricultural use. It features a 6-speed manual transmission system with 6 forward gears and 1 reverse gear. The tractor's operating weight stands at 2,304 pounds and it has a 61.4-inch wheelbase, enhancing stability during operation. The front and rear agricultural tires are sized at 4.00-15 and 10.0-24 respectively. The Renault N73 is a classic and versatile tractor, adequate for small to medium farming applications. It has a practical design with a focus on ease of maintenance and operation.
Show more...

Key Specifications

Power Output: 20

Transmission: Manual

Drive Type: 2WD

Operating Weight: 2304

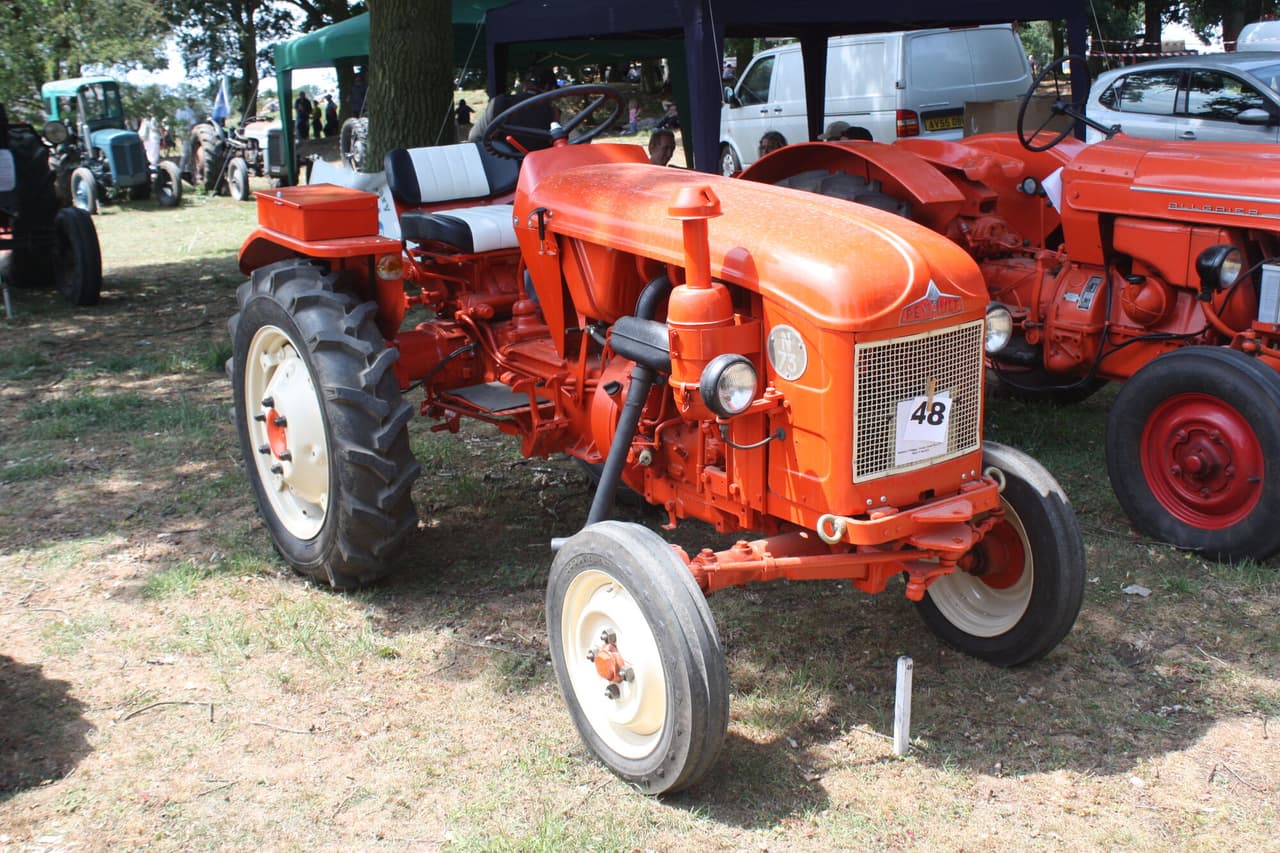

Image Gallery

Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor Renault N73 Tractor

Technical Specifications

Engine

Manufacturer
MWM
Model
AKD 311 Z
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
2
Displacement (ci)
85.4
Bore (in)
3.543
Stroke (in)
4.331
Rated RPM
2000
Power Output (hp)
20

Transmission

Type
Manual
Forward Gears
6
Reverse Gears
1
Total Gears
-

Dimensions

Length (in)
107.1
Width (in)
-
Height (in)
58.3
Operating Weight (lb)
2304

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
