Renault Master 1

Last Updated: June 2024

Overview

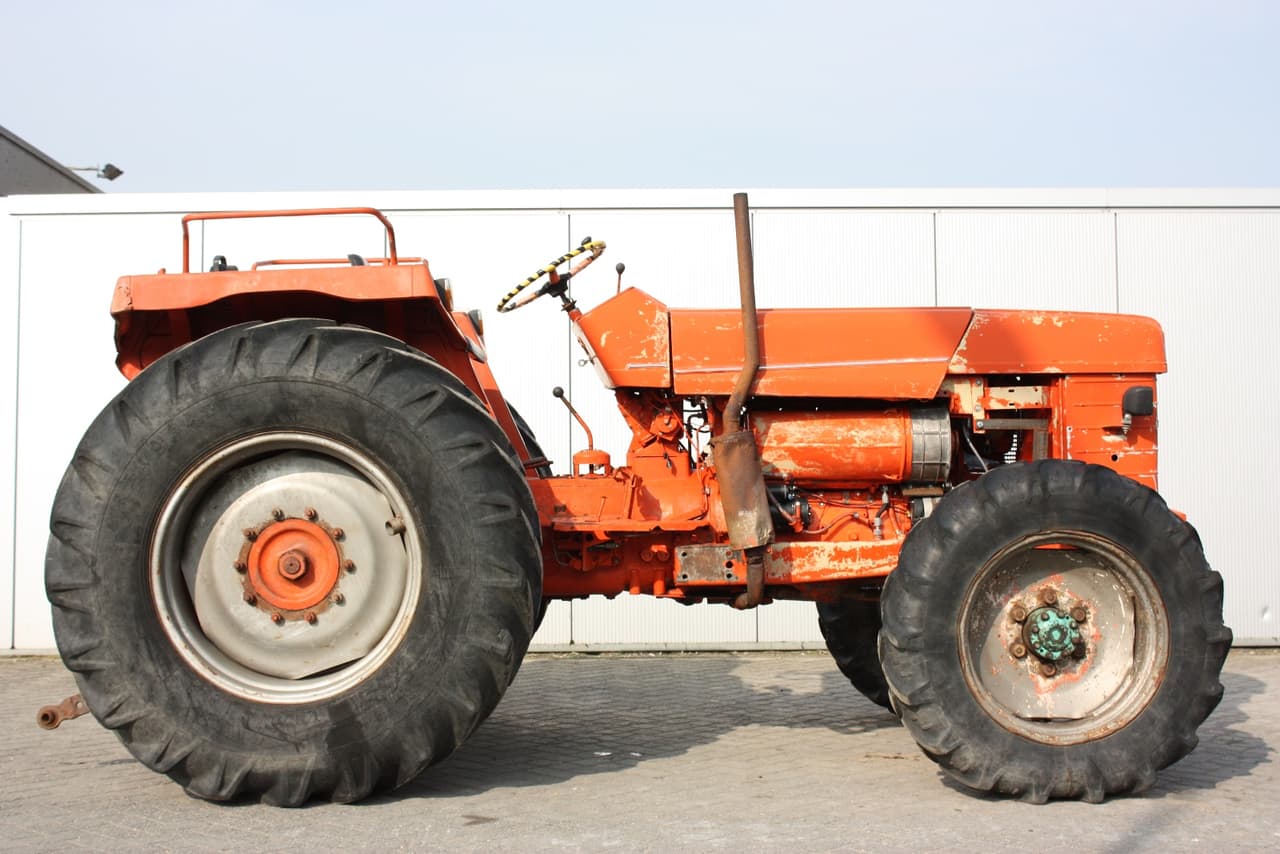

The Renault Master 1 is a utility tractor equipped with a 60 horsepower (44.7 kW) MWM D 308-4 four-cylinder engine. It operates under a 2WD chassis designed for a variety of agricultural tasks. The tractor supports a 10-speed manual transmission with 10 forward gears and 2 reverse gears. The Master 1 has a mechanical steering system and a basic wheelbase of 92.1 inches, which facilitates maneuverability in farming operations. With a length of 155.9 inches and a standing height of 96.1 inches, it possesses a decently compact frame that suits various applications. The operating weight starts at 6,053 pounds, suggesting a robust build capable of handling substantial workloads. The tire setup includes 6.50-20 front tires and 16.9-30 rear agricultural tires. This model lacks specific information on features such as the hydraulic system, PTO specs, hitch capabilities, and the start year of manufacture. It is tailored to meet the essentials of farming and light to medium agricultural duties.
Show more...

Key Specifications

Power Output: 60

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6053

Technical Specifications

Engine

Manufacturer
MWM
Model
D 308-4
Cooling Type
-
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
-
Cylinders
4
Displacement (ci)
181.7
Bore (in)
3.74
Stroke (in)
4.134
Rated RPM
2500
Power Output (hp)
60

Transmission

Type
Manual
Forward Gears
10
Reverse Gears
2
Total Gears
12

Dimensions

Length (in)
155.9
Width (in)
-
Height (in)
96.1
Operating Weight (lb)
6053

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2
Drive Type
2WD
Steering Type
Mechanical
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
