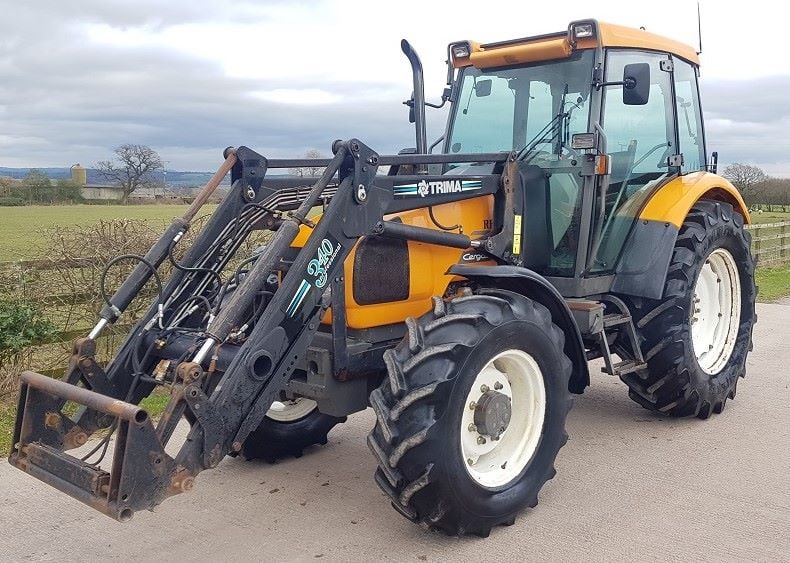

Renault Cergos 340

Last Updated: June 2024

Overview

The Renault Cergos 340 tractor is powered by a John Deere 4039 TRT, 4-cylinder turbocharged diesel engine that delivers 85 horsepower at 2350 rated RPMs. With a torque of 228.7 lb-ft attained at 1500 RPM, its substantial pulling capability is well-suited for various agricultural tasks. The tractor features a hydrostatic power steering system and a full-time 4WD (4x4 MFWD 4WD) chassis that ensures enhanced traction and maneuverability in diverse terrain. It also has 20 forward and reverse gears, allowing for optimal speed selection tailored to specific tasks. Tire specifications indicate a usage pattern predominantly agricultural in nature with a front tire configuration of 380/70R24 and rear tires of 480/70R34. The physical dimensions include a length of 188.6 inches, a height of 109.8 inches, and an operating weight of 9,084 lbs, which indicate a robust and substantial machinery size. As the specifications illustrate, the Renault Cergos 340 appears to be well-suited for a range of demanding agricultural applications.
Show more...

Key Specifications

Power Output: 85

Drive Type: 4WD

Operating Weight: 9,084

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
John Deere
Model
4039 TRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Turbocharged
Cylinders
4
Displacement (ci)
239.2
Bore (in)
4.193
Stroke (in)
4.331
Rated RPM
2350
Power Output (hp)
85

Transmission

Type
-
Forward Gears
20
Reverse Gears
20
Total Gears
40

Dimensions

Length (in)
188.6
Width (in)
-
Height (in)
109.8
Operating Weight (lb)
9,084

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
24.5 (Calculated from 380/70R24, approximate)
Front Tire Width (in)
14.96 (Calculated from 380/70R24, approximate)
Rear Tire Diameter (in)
33.9 (Calculated from 480/70R34, approximate)
Rear Tire Width (in)
18.9 (Calculated from 480/70R34, approximate)
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
Category 3
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
