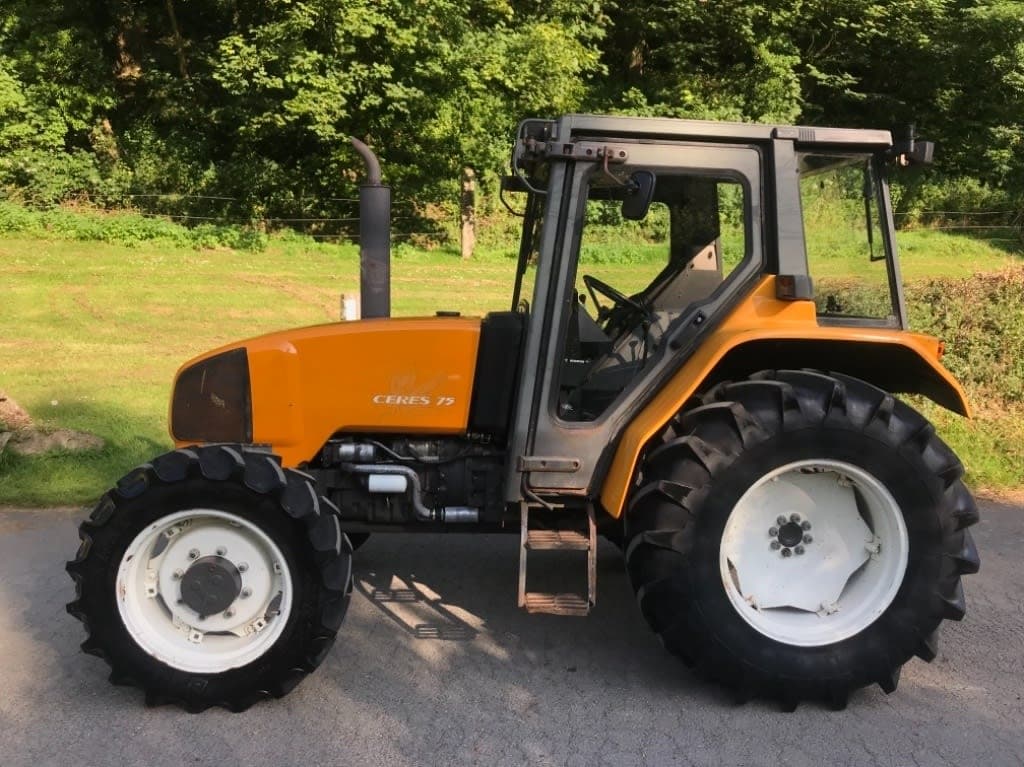

Renault Ceres 75

Last Updated: June 2024

Overview

The Renault Ceres 75 is a 2WD tractor, identifiable by its 4x2 wheel configuration and is powered by a 65 hp diesel engine. The available engine models include the Perkins 4-236 and the John Deere 4039 DRT, both of which are 4-cylinder, liquid-cooled units. This tractor has a manual transmission type with at least 9 forward gears available. It is equipped with hydrostatic power steering, providing more accessible maneuverability. For its chassis, the tractor supports a minimum wheelbase of 92.1 inches. The tractor's operating weight ranges from 6,548 to 7,585 pounds, showcasing its sturdy build for various tasks. Its tires are standard ag type with the front tire width of 7.50 inches and the rear tire width of 16.9 inches. Physical dimensions of the Ceres 75 include a length of up to 174.8 inches and a height of up to 96.1 inches.
Show more...

Key Specifications

Power Output: 65

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6548 / 7585

Fuel Type: Diesel

Technical Specifications

Engine

Manufacturer
Perkins / John Deere
Model
4-236 / 4039 DRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
235.8 / 239.2
Bore (in)
3.875 / 4.193
Stroke (in)
5.00 / 4.331
Rated RPM
2250 / 2150
Power Output (hp)
65

Transmission

Type
Manual
Forward Gears
9
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
153.5 / 174.8
Width (in)
-
Height (in)
95.3 / 96.1
Operating Weight (lb)
6548 / 7585

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic Power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
7.5
Rear Tire Diameter (in)
-
Rear Tire Width (in)
16.9
Front/Rear Rim Diameter (in)
-
Tire Type
Ag
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
