Renault Ceres 65

Last Updated: June 2024

Overview

The Renault Ceres 65 is equipped with a 2WD (4x2) chassis, suitable for a variety of agricultural tasks. It features hydrostatic power steering which eases maneuverability. The manual transmission offers a set of 9 forward and derived 10 reverse gears, driven by a diesel-fueled 3-cylinder MWM D226-3 engine. The cooling system is liquid-cooled to maintain engine temperature. The engine has a displacement of 190.2 cubic inches, producing up to 55 horsepower at a rated RPM value of approximately 2250. Featuring a Category 3 hitch and rolling on agricultural tires, the Ceres 65's weight varies around 6306 pounds, with open operator station, common in models of its class. This model of tractor is a medium-size utility tractor, proficient in both field and varied agricultural tasks, with a reliable build that has competed well in the market.

Key Specifications

Power Output: 55 (also listed as 54 hp, discrepancy is assumed to be rounding)

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6306 (also listed as 6118, discrepancy is assumed to be due to variant configurations)

Fuel Type: Diesel

Image Gallery

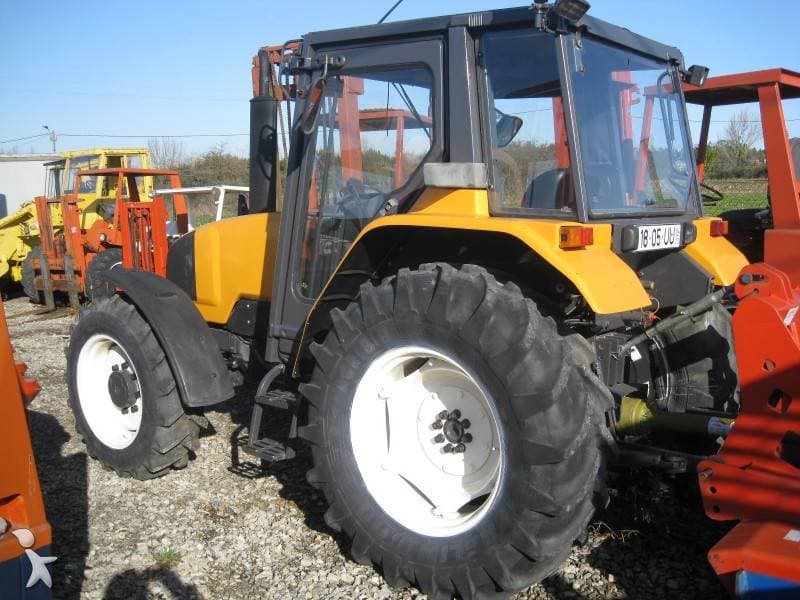

Renault Ceres 65 Tractor

Technical Specifications

Engine

Manufacturer: MWM (also listed as John Deere 3029 DRT, assumed incorrect)
Model: D226-3
Cooling Type: Liquid-Cooled
Cylinder Orientation: -
Valve Configuration: -
Fuel Type: Diesel
Induction Type: Naturally Aspirated (assumed due to lack of forced induction details)
Cylinders: 3
Displacement (ci): 190.2 (also listed as 179.4 ci, discrepancy is assumed to be an error)
Bore (in): 4.134 (also listed as 4.193 in, discrepancy is assumed to be an error)
Stroke (in): 4.724 (also listed as 4.331 in, discrepancy assumed to be an error)
Rated RPM: 2250 (also listed as 2280, discrepancy is assumed to be an error)
Power Output (hp): 55 (also listed as 54 hp, discrepancy is assumed to be rounding)

Transmission

Type: Manual
Forward Gears: 9
Reverse Gears: 10
Total Gears: -

Dimensions

Length (in): 169.7 (also listed as 146.9, discrepancy is assumed to be an error)
Width (in): -
Height (in): 94.1
Operating Weight (lb): 6306 (also listed as 6118, discrepancy is assumed to be due to variant configurations)

Power Take-Off (PTO)

PTO Type: -
PTO Speed 1 (rpm): -
PTO Speed 2 (rpm): -
PTO Speed 3 (rpm): -

Miscellaneous

Chassis: 4x2 2WD
Drive Type: 2WD
Steering Type: Hydrostatic Power
Coolant Capacity (qts): -
Front Tire Diameter (in): -
Front Tire Width (in): 6.50 (based on tire size 6.50-16)
Rear Tire Diameter (in): -
Rear Tire Width (in): 14.9 (based on tire size 14.9-28)
Front/Rear Rim Diameter (in): 16/28 (based on tire sizes 6.50-16 and 14.9-28)
Tire Type: Ag (agricultural)
Manufacture - End Year: -
Hitch Type: -
Hitch Category: Category 3
Hitch Position: Rear
Hitch Capacity (lb): -
Operator Station Type: Open (assumed, due to lack of any information suggesting a cab)
Starter Type: Electric Starter (assumed, as this is standard on modern tractors)
Brake Type: -
Hydraulic System Type: -
