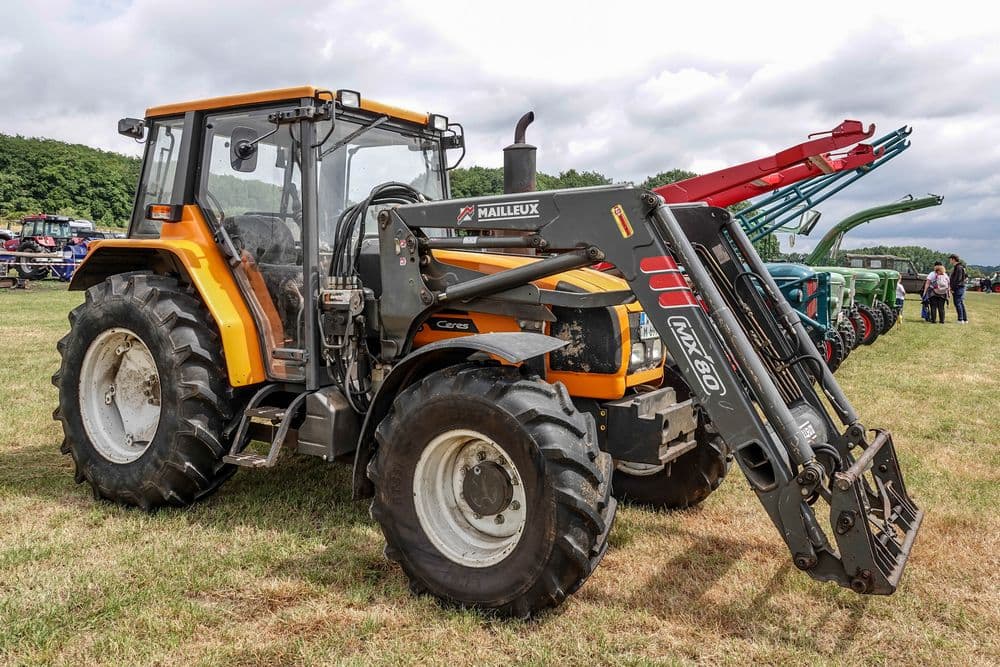

Renault Ceres 320

Last Updated: June 2024

Overview

The Renault Ceres 320 is a utility tractor with a chassis configuration of 4x2 2WD, making it suitable for a variety of farming tasks. It features a manual transmission with a notable 20 forward gears, controlled by hydrostatic power steering for ease of maneuverability. The tractor is powered by a 65 horsepower, 239.2 cubic inch John Deere 4039 DRT diesel engine, which is liquid-cooled and rates at 2350 RPM. Its cylindrical bore measures 4.193 inches, and the stroke is 4.331 inches. The exact gearing arrangement isn't fully clear, with conflicting information about the number of reverse gears, which remains unknown. With a length of 174.8 inches and a height of 96.1 inches, the Renault Ceres 320 weighs in at 6967 pounds. While the complete tire measurements are not provided, the agricultural tire specs mentioned are 7.50-16 for the front and 16.9-28 for the rear. Additional details about the manufacture start and end years, hitch system, operator station, PTO, brakes, and hydraulic system remain unknown. The tire widths and rim diameters are also unspecified. Information about starter type, additional features, and more detailed hydraulic system type are likewise not available.
Show more...

Key Specifications

Category: Utility

Power Output: 65

Transmission: Manual

Drive Type: 2WD

Operating Weight: 6967

Fuel Type: Diesel

Renault Ceres 320 vs. Similar Tractors

Power Output
Average
Greater than 61% of similar tractors.
Operating Weight
Average
Greater than 52% of similar tractors.

Technical Specifications

Engine

Manufacturer
John Deere
Model
4039 DRT
Cooling Type
Liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
Diesel
Induction Type
Naturally aspirated
Cylinders
4
Displacement (ci)
239.2
Bore (in)
4.193
Stroke (in)
4.331
Rated RPM
2350
Power Output (hp)
65

Transmission

Type
Manual
Forward Gears
20
Reverse Gears
-
Total Gears
-

Dimensions

Length (in)
174.8
Width (in)
-
Height (in)
96.1
Operating Weight (lb)
6967

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x2 2WD
Drive Type
2WD
Steering Type
Hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
Agricultural
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
