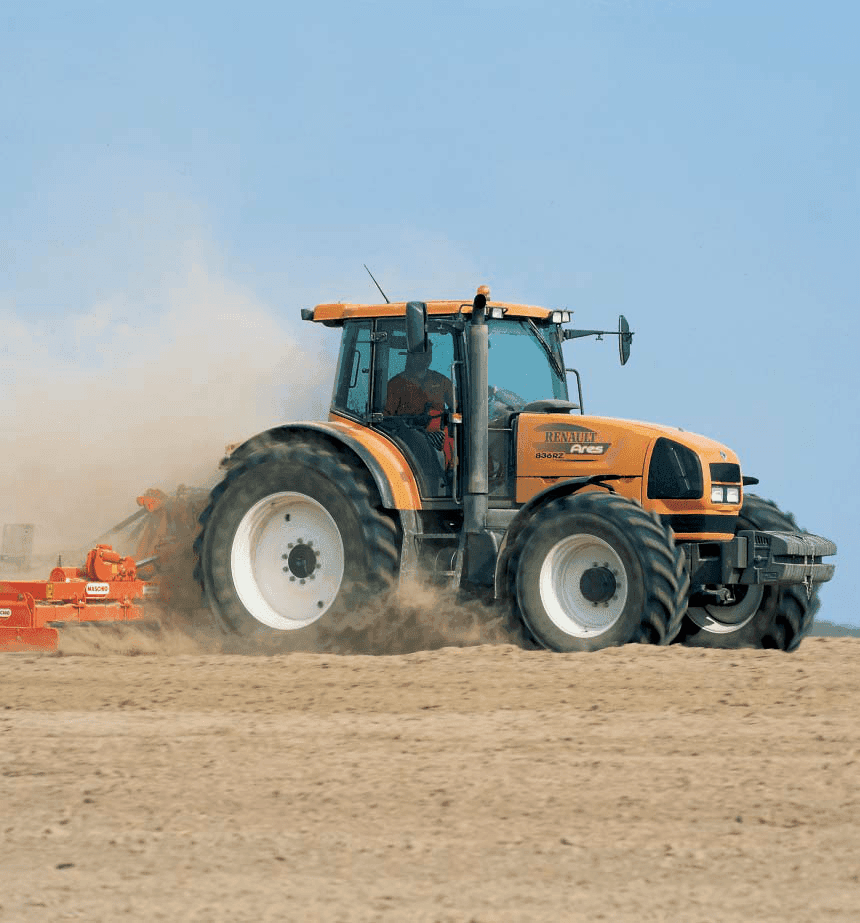

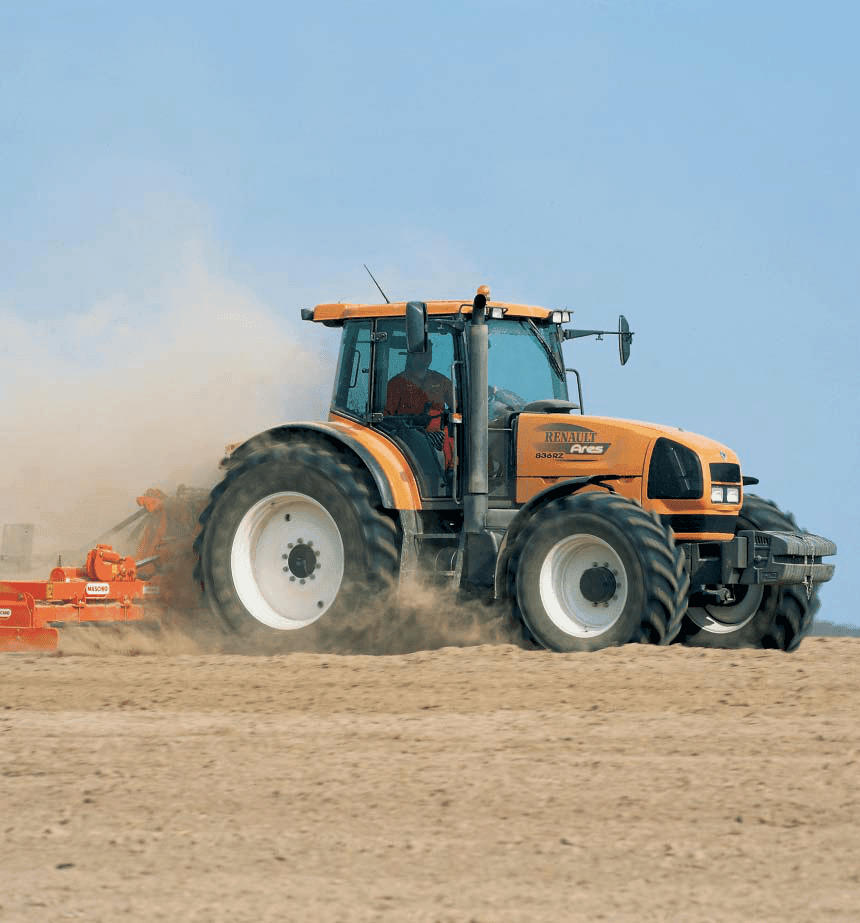

Renault Ares 836

Last Updated: June 2024

Overview

The Renault Ares 836 is a tractor that combines robust power and a versatile 4-wheel drive chassis. Equipped with a 6-cylinder, intercooled turbo John Deere 6068 HRT engine, it boasts a 205 hp power output at a rated RPM of 1900. The tractor utilizes a 32-speed transmission system, allowing for a wide range of speeds suitable for various agricultural tasks. Its hydrostatic power steering contributes to the machine's maneuverability in the field. With a displacement of 414.2 cubic inches and a torque of 627.0 lb-ft at 1500 RPM, the Ares 836 is designed to handle demanding work conditions. The tractor's dimensions, length of 181.9 inches and height of 121.7 inches, combined with the weight of 18,345 lbs, underline its substantial build. The wheelbase measures 113.4 inches, providing stability for different operations. The tractor rides on large agricultural tires, with 16.9R30 at the front and 20.8R42 at the rear, to tackle various terrains. Given its specifications, the Ares 836 is likely to excel in tasks that require significant power and durability.
Show more...

Key Specifications

Power Output: 205

Drive Type: 4WD

Operating Weight: 18345

Technical Specifications

Engine

Manufacturer
John Deere
Model
6068 HRT
Cooling Type
liquid-cooled
Cylinder Orientation
-
Valve Configuration
-
Fuel Type
-
Induction Type
intercooled turbo
Cylinders
6
Displacement (ci)
414.2
Bore (in)
4.193
Stroke (in)
5
Rated RPM
1900
Power Output (hp)
205

Transmission

Type
-
Forward Gears
32
Reverse Gears
32
Total Gears
32

Dimensions

Length (in)
181.9
Width (in)
-
Height (in)
121.7
Operating Weight (lb)
18345

Power Take-Off (PTO)

PTO Type
-
PTO Speed 1 (rpm)
-
PTO Speed 2 (rpm)
-
PTO Speed 3 (rpm)
-

Miscellaneous

Chassis
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
hydrostatic power
Coolant Capacity (qts)
-
Front Tire Diameter (in)
-
Front Tire Width (in)
-
Rear Tire Diameter (in)
-
Rear Tire Width (in)
-
Front/Rear Rim Diameter (in)
-
Tire Type
-
Manufacture - End Year
-
Hitch Type
-
Hitch Category
-
Hitch Position
-
Hitch Capacity (lb)
-
Operator Station Type
-
Starter Type
-
Brake Type
-
Hydraulic System Type
-
